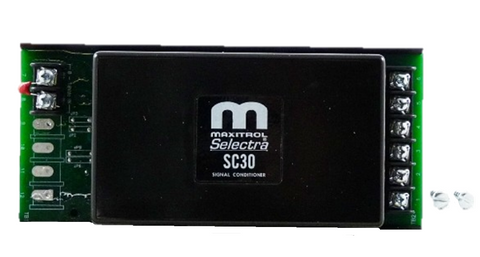

Maxitrol SC30 Signal Conditioner

Maxitrol SC30 Signal Conditioner

  • $343.46


0-10VDC Input, 0-20VDC Output Signal Conditioner for Indirect Fired Gas Applications using 2-Speed Inducers and 2-Stage Gas Valves

Maxitrol SC30 Signal Conditioner – 0-10VDC Input, 0-20VDC Output for Indirect Fired Gas Systems

The Maxitrol SC30 Signal Conditioner is a high-performance control solution specifically engineered for indirect fired gas applications utilizing 2-speed inducers and 2-stage gas valves. Designed for use with Selectra valves, this track-mounted controller delivers superior signal conditioning and system coordination to ensure safe, smooth burner operation.


🔧 Key Features:

  • Model: SC30

  • Input Signal: 0-10 VDC

  • Output Signal: 0-20 VDC

  • Used With: Maxitrol Selectra M/MR Series Gas Valves

  • Control Functions:

    • Converts 0–10 VDC input to 0–20 VDC output

    • Operates NO relay for inducer speed and gas valve staging

    • Adjustable startup delay (0–30 sec) or fixed delay (in 15-sec increments starting at 45 sec)

    • Adjustable startup VDC output (5–15 VDC)

  • Application: Designed for indirect fired gas heating systems

  • Maximum Inlet Pressure: 5 PSI

  • Mounting Style: Track-mounted

  • System Compatibility: 2-speed inducers, 2-stage gas valves


✅ Benefits:

  • Ensures reliable ignition by preventing burner light-off at low gas input

  • Provides precise modulation control with enhanced compatibility for Maxitrol Selectra valves

  • Integrated relay functionality allows seamless staging and inducer speed switching

  • Compact, space-saving track-mount design for easy installation

  • Ideal for HVAC professionals and OEMs working with indirect fired systems


📦 Applications:

  • Commercial HVAC systems

  • Industrial heating applications

  • Multi-stage gas burner systems

  • Equipment requiring precise gas flow modulation and control


Upgrade your burner control system with the Maxitrol SC30 Signal Conditioner—a trusted solution for accurate signal conversion and safe, efficient system operation.
