Mitsubishi Electric T7WM13315 Boad

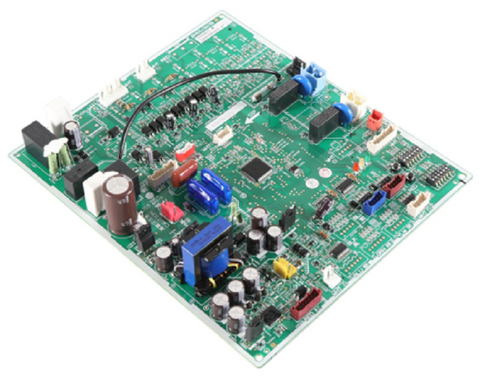

The Mitsubishi Electric T7WM13315 is a high-precision outdoor control PC board designed for integration within inverter-driven HVAC systems. As a critical OEM replacement part, this printed circuit board acts as the central intelligence for the condenser, managing complex data streams from thermistors and pressure sensors to regulate compressor speed and EEV metering device positions. Its robust architecture is engineered to maintain operation in demanding environments, ensuring the Mitsubishi Electric HVAC equipment maintains its high SEER rating and energy-saving performance without erratic shutdowns.

When performing a control board replacement, technicians should verify chassis continuity and proper grounding. The T7WM13315 is highly sensitive to voltage fluctuations; therefore, ensuring a stable 208/230V supply is non-negotiable to prevent premature PCB failure. This board facilitates seamless communication between indoor and outdoor units, neutralizing common error codes associated with signal loss or improper wiring. Its lightweight yet durable 1.05lb design makes it an ideal fit for quick field swaps during ductless mini-split repair, drastically reducing downtime and restoring precise temperature regulation to the refrigeration and cooling cycle.

• OEM Compatibility: Specifically engineered for Mitsubishi Electric outdoor units, ensuring no-drift signal processing.
• Variable Frequency Control: Precisely manages inverter compressor cycles to optimize system efficiency.
• Signal Integrity: High-quality traces and advanced design prevent noise-related communication errors.
• System Restoration: Resolves issues with outdoor control failure, such as non-responsive cooling or heating modes.

Common Questions

What are the signs of a failing T7WM13315 board?
Common indicators include blinking LEDs on the outdoor unit, the compressor failing to start while the indoor unit remains powered, or intermittent communication error codes on the system controller.

Can voltage surges damage this PC board?
Yes. Inverter boards like the T7WM13315 are susceptible to damage from electrical spikes. Professional installation of a dedicated surge protector is recommended to shield the sensitive electronics from line noise or high-voltage events.

How do I confirm this is the correct part for my unit?
Verify the SKU T7WM13315 against the part number listed on your existing outdoor control board or your unit’s technical data sheet to ensure a direct match for Mitsubishi Electric equipment.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
