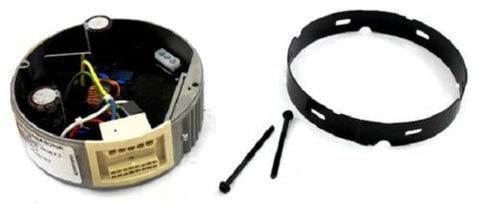

Trane MOD2183 Programmed EMC

When you are troubleshooting a failed blower assembly in a Trane or American Standard air handler, the Trane MOD2183 Programmed EMC (Electronically Mutated Control) is the direct, factory-authorized solution for restoring precise airflow. This 1/2 HP variable speed module is essentially the "brain" of the blower motor, handling the complex algorithms that modulate RPM based on system demand to maintain peak efficiency. As a direct replacement for MOD0816, this programmed module ensures that your unit maintains its specific factory CFM (Cubic Feet per Minute) settings without the need for manual field programming. It utilizes a 16-pin harness interface to communicate seamlessly with the integrated furnace control board, allowing for the precise execution of fan ramps and delays required for proper dehumidification and climate control.

For veteran HVAC contractors, the Trane MOD2183 motor module is the preferred choice for ECM 2.3 motor repairs because it eliminates the compatibility risks associated with generic unprogrammed modules. This 120/240V component is engineered to withstand the thermal stress and high-static conditions common in residential and light commercial air handlers. Replacing the module independently of the motor section is a cost-effective way to fix a "no-start" condition when the motor windings and bearings remain within spec. Proper installation ensures optimized variable speed HVAC performance, reducing noise and power consumption over older PSC technology.

• Direct Compatibility: Explicitly serves as the Trane MOD0816 replacement, providing a plug-and-play fit for residential air handlers and furnaces.
• Factory Programmed: Pre-loaded with Trane-specific software to manage air volume and motor torque without additional service tools.
• Enhanced Motor Efficiency: Leverages Genteq ECM technology to provide energy-saving variable speed operation during heating and cooling cycles.
• Standardized 16-Pin Interface: Simplifies diagnostics and integrates directly with existing 16-wire harness systems.
• High Reliability: Built with high-grade electronic components to resist common failures like moisture-induced corrosion or power surge damage.

• How do I confirm the MOD2183 is the correct module for my unit? Check the original part number on the blower assembly. If your existing module is MOD0816 or MOD2183, this is the correct factory match. For other numbers, verify the programming code on the unit’s nameplate.
• Can I replace just the module instead of the entire motor? Yes. If your motor section (the bell and windings) checks out with equal resistance across all three windings and the shaft spins freely, installing this programmed ECM module will resolve control-related failures.
• Does this module require a specific setup or field programming? No. Unlike universal unprogrammed modules that require a separate service tool, this unit is factory-commissioned specifically for Trane equipment to deliver the correct CFM right out of the box.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
