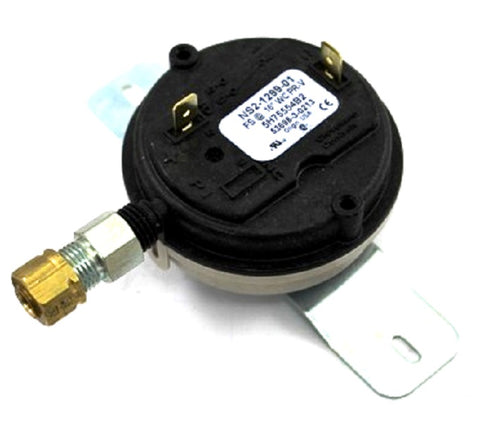

Modine 5H0755540002 Pressure Switch

The Modine 5H0755540002 Pressure Switch is a critical OEM safety component designed for precise differential pressure sensing in gas-fired heating systems. Calibrated to a fixed .16" WC setpoint, this SPST (Single Pole Single Throw) vacuum switch monitors the draft inducer motor to ensure exhaust gases are properly vented before the ignition sequence begins. It serves as a direct replacement for 5H75554-2, facilitating a seamless field swap for contractors servicing Modine Hot Dawg unit heaters and other compatible HVAC series. Its primary function is to prevent burner operation if the flue pipe is obstructed or if the inducer fan fails, mitigating the risk of carbon monoxide accumulation.

Constructed with a durable diaphragm and high-reliability electrical contacts, this 0.16 inches water column pressure switch is engineered to withstand the rigorous cycling of commercial and residential heating environments. When the system calls for heat, the switch must close to prove airflow; if it remains open, the control board will trigger a safety lockout. For technicians troubleshooting intermittent heater shutdowns or furnace ignition failure, verifying the integrity of this switch with a manometer and multimeter is a standard diagnostic step. By utilizing this genuine Modine replacement part, you maintain the original equipment specifications and ensure the continued safety and efficiency of the power-vented unit heater.

Key Benefits:

• Exact OEM Calibration: Pre-set at .16" WC to match factory airflow requirements, ensuring the unit operates within safe performance parameters.
• Broad Compatibility: Functions as the verified 5H75554-2 replacement, fitting a wide range of Modine's standard and low-profile gas-fired heaters.
• Direct Fit Installation: Designed for an immediate mechanical and electrical match, reducing time on the job site for service pros.
• Safety-First Operation: Effectively monitors for restricted ventilation and inducer motor performance, automatically preventing hazardous burner ignition.

Common Questions:

What are the symptoms of a failing pressure switch?
Common indicators include the inducer motor running without the igniter glowing, short cycling, or the furnace control board flashing an exhaust pressure fault code. In many cases, the system will attempt several ignite cycles before entering a hard lockout.

Can I use this switch as a substitute for different WC ratings?
No. Pressure switches are safety devices calibrated to specific water column (WC) settings. Installing a switch with an incorrect setpoint can lead to dangerous operating conditions or frequent nuisance trips. Always confirm the part number matches the manufacturer’s specifications.

How do I test the Modine 5H0755540002?
First, check for cracks or moisture in the vacuum tubing. Then, use a manometer to measure the actual draft produced by the inducer. Finally, use a multimeter to check for continuity across the SPST terminals when the required .16" WC vacuum is applied.
