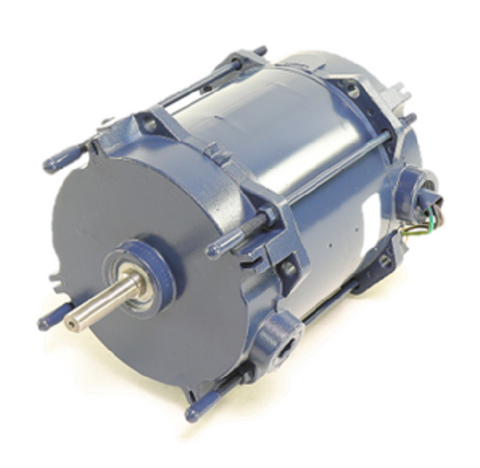

Modine 9F0701090000 Motor

The Modine 9F0701090000 is an OEM-grade 115v 1ph 1/6hp 1725rpm motor specifically engineered for high-performance service in Modine unit heaters and hydronic heating systems. Built for sustained duty cycles, this split phase motor operates at a fixed 1725 RPM, providing the consistent torque required to drive fan blades without compromising air volume or static pressure handling. It features OM-070109 technical specifications, ensuring a direct drop-in replacement for aging or failed 1/6 HP HVAC motors in commercial and industrial settings. The unit utilizes a standard frame and shaft configuration to prevent physical interference during field installation, allowing contractors to restore system airflow and thermal efficiency quickly. By prioritizing mechanical durability and precise electrical winding tolerances, this Modine replacement motor minimizes resonance and electrical hum during operation, securing the longevity of the heating assembly in demanding environments.

• Direct OEM Fit: Ensures exact mounting alignment and shaft sizing for Modine 9F0701090000 applications, reducing labor time during field swaps.
• Industrial-Grade Winding: The 115V single phase design is optimized for standard voltage drops common in commercial ductwork environments.
• Reliable Fixed Speed: Operating at a steady 1725 RPM maintains the specific CFM requirements of the heat exchanger to prevent limit-tripping.
• Resilient Construction: Built for continuous run cycles in high-ambient temperature zones near the unit heater plenum.

What are the electrical requirements for the 9F0701090000?
This motor operates on a standard 115V, single-phase power supply. Always verify the amperage draw on the existing nameplate to ensure your circuit protection and wiring gauge are sufficient for the 1/6HP load.

Can I use this motor in non-Modine units?
While the electrical specifications (115v, 1725rpm, 1/6hp) are common, this part is specifically designed for the mounting bracket and shaft diameter of Modine heating equipment. Measure your shaft length and diameter precisely if attempting a cross-reference.

Does this motor require an external run capacitor?
As a split-phase motor designed for these specific RPM and torque curves, check the wiring diagram on the original housing; typically, these OEM motors are designed for direct lead connection without external capacitor mounting.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
