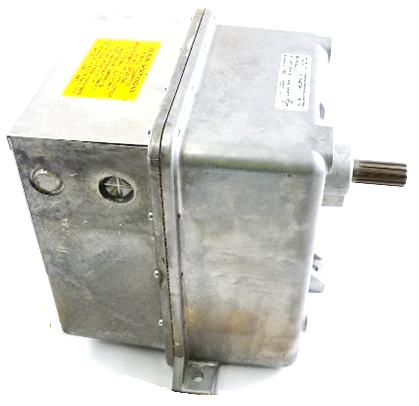

Schneider Electric (Barber Colman) MP-9710 Actuator

The Schneider Electric MP-9710 is a high-torque, oil-submerged actuator engineered for precise control of large dampers, valves, and heavy-duty linkages in commercial HVAC systems. Operating on 120V power supply, this proportional or floating actuator provides a robust 800 lb-in torque rating, ensuring reliable positioning even under significant static pressure loads. The oil-submerged housing is critical for thermal management and internal lubrication, extending the mechanical life of the gears during high-duty cycle operation typical of industrial air handling units. With a 135-second timing (no load) for a full 180-degree stroke, it allows for stable modulation without hunting. This unit features a reversible limit switch and a built-in SPDT auxiliary switch for easy integration into interlocking safety circuits or end-switch verification. Contractors utilize the Barber Colman MP-9710 as a direct replacement in legacy pneumatic-to-electric retrofits, utilizing its high-torque output to manage multi-section damper banks where standard actuators lack sufficient force.

• Oil-Submerged Internals: Facilitates continuous lubrication and cooling for maximum durability in demanding mechanical rooms.
• High Torque Output: Delivers 800 lb-in of force, making it suitable for large-scale HVAC damper actuators and heavy valve assemblies.
• Integrated Auxiliary Switch: The SPDT switch allows for seamless coordination with fans or secondary control sequences.
• Flexible Control Signals: Compatible with both proportional and floating control inputs for versatile system integration.
• Field-Adjustable Rotation: Features a 180-degree limit switch that is reversible to match specific installation geometry.

Common Installation Questions

What is the primary advantage of an oil-submerged actuator like the MP-9710?
The oil bath provides superior heat dissipation and permanent lubrication for the gear train. This is essential for heavy-duty actuators that operate in high-ambient temperature environments or require frequent modulation.

Can the MP-9710 replace older Barber Colman actuators?
Yes, this model is a standard for retrofitting older electronic actuator setups. However, technicians should verify the linkage requirements and signal compatibility (135-ohm or 0-10V with proper controllers) before installation.

How do I set the limit switches on this unit?
The unit includes an internal 180-degree reversible limit switch. Accurate calibration ensures the motor stops at the physical limits of the damper or valve, preventing mechanical binding and internal gear stress.
