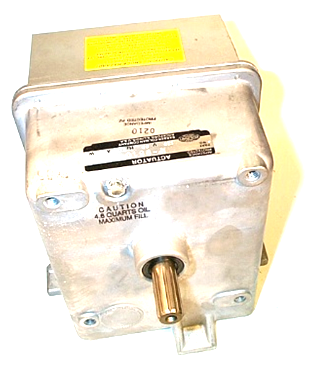

Schneider Electric (Barber Colman) MP-9810 Motor

For high-load commercial HVAC applications, the Schneider Electric (Barber Colman) MP-9810 Motor provides a rugged, oil-submerged solution engineered for long-term reliability. This high torque actuator is designed to drive large dampers and heavy globe valves where precision and power are non-negotiable. Operating at 120V, the unit delivers a substantial 1300 lb-in torque, utilizing an oil-immersed gear train to maintain consistent performance and internal lubrication. This model is a direct technically identical replacement for EA-76, MC-9610, and MC-9810, making it a drop-in upgrade for legacy systems. The MP-9810 proportional actuator features a 180-degree reversible limit switch and an integrated SPDT auxiliary switch for status feedback. With a 115-second no-load timing, this Barber Colman MP-9810 replacement ensures smooth, controlled adjustments in complex floating control HVAC setups and terminal block electrical connections for straightforward field wiring.

Key Benefits

• Extreme Durability: The oil-submerged design protects the motor and gear train from friction and heat, ensuring a longer service life in demanding environments.
• High Torque Capacity: Generates 1300 lb-in torque to effectively manage high-resistance dampers and large valve assemblies.
• Versatile Control: Compatible with both proportional and floating signals, allowing for flexible integration into various building automation systems.
• Legacy Compatibility: Acts as a seamless replacement motor for EA-76, MC-9610, and MC-9810 units, reducing downtime during retrofits.
• Integrated Feedback: Includes an adjustable SPDT auxiliary switch and a 180-degree reversible limit switch for precise position monitoring.

Common Questions

Is the MP-9810 a direct replacement for the MC-9610?
Yes, the Schneider Electric MP-9810 is technically identical to the MC-9610, as well as the EA-76 and MC-9810 models, sharing the same physical footprint and electrical specifications.

What is the primary application for this oil-submerged actuator?
This HVAC damper motor is specifically built for heavy-duty high torque actuator applications, including large air handlers, ventilation flaps, and globe valve assemblies.

Does this unit support proportional control signals?
Yes, the 120V MP-9810 supports both proportional and floating control, making it adaptable to most standard 120V commercial controllers.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
