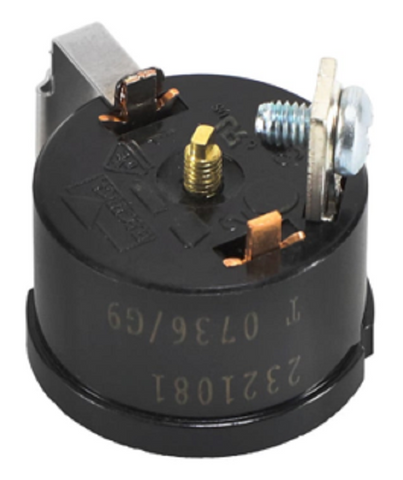

Nidec-Embraco 2321081-ESP Overload

Nidec-Embraco 2321081-ESP Overload

Nidec-Embraco

  • $22.58


The Nidec-Embraco 2321081-ESP Overload is an external compressor overload protector, also called a motor protector or thermal overload, built for specific Embraco hermetic refrigeration compressors. It mounts against the compressor shell and wires in series with the motor, so it sees the same line current the motor windings see and the same heat the shell gives off. When current climbs too high or winding temperature runs out of range, the internal bimetal disc snaps open and cuts power to the compressor motor before the windings are damaged. Once the disc cools, it resets on its own and the compressor can try to start again.

Embraco service-parts information lists the 2321081-ESP compressor overload protector for several compressor applications, including NEU2168U1, NEU6217U1 and NE9213E1. The protector works as one part of the starting and protection circuit, together with the start relay, start capacitor and run capacitor specified for the application. Embraco documentation pairs the 2321081-ESP with relay 1253069-ESP on NEU2168U1 and NEU6217U1 applications, while NE9213E1 is listed with relay 1253025-ESP. Closely related Embraco compressors often take a different overload, relay and capacitor combination, which is why the complete compressor model number matters more than horsepower or physical shape.

A protector that is tripping shows up as a compressor that hums or clicks and then goes quiet, or one that runs a few minutes and cuts out, then repeats the cycle as the disc cools and resets. Before condemning the 2321081-ESP, check supply voltage, the start relay, the start and run capacitors, condenser fan operation, condenser coil airflow and the refrigerant charge, since each of these can drive the motor into an overload condition. A protector that reads open with no continuity across its terminals once it has fully cooled is defective. Install the replacement snug against the shell in its protector bracket, because the disc senses shell temperature as well as current. An overload with the wrong trip rating either nuisance-trips or fails to protect the motor.

Key Benefits

  • Motor Protection: opens the circuit on excess current or high winding temperature, guarding the compressor motor against burnout.
  • Application Matched: listed by Embraco service-parts information for NEU2168U1, NEU6217U1 and NE9213E1 compressors.
  • Automatic Reset: the bimetal element resets once it cools, so a single trip does not leave the unit down.
  • Complete Circuit Support: works with the correct start relay (1253069-ESP or 1253025-ESP by application) and capacitors to restore proper starting and protection.

Common Questions

  • Which compressors use the 2321081-ESP overload? Embraco service-parts information lists it for NEU2168U1, NEU6217U1 and NE9213E1, so confirm the full model number on the compressor nameplate first.
  • Which relay goes with the 2321081-ESP? It depends on the compressor. 1253069-ESP is paired with NEU2168U1 and NEU6217U1, and 1253025-ESP is listed with NE9213E1.
  • Can I use a different Embraco overload if the shape looks the same? No. Each Embraco overload has its own trip current and temperature characteristics matched to the motor, so match the original part number and compressor model, not appearance.
