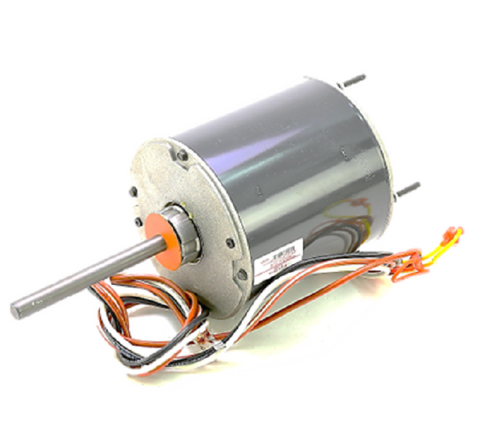

Nidec-US Motors 1868 Motor

Looking for a reliable condenser fan motor replacement? The Nidec-US Motors 1868 is a heavy-duty, 3/4 HP solution designed for high-demand HVAC service calls. Operating at 1075 RPM on 208-230V, this PSC (Permanent Split Capacitor) motor features a 48Y NEMA frame and a totally enclosed air over (TEAO) enclosure, making it ideal for outdoor condensing units where protection from the elements is critical.

As a seasoned technician, you know the importance of a direct replacement for S1-024-27622-000 to ensure exact mechanical fit and electrical performance. This unit is built with self-aligning ball bearings and an automatic reset thermal overload protector to handle continuous-duty cycles in ambient temperatures up to 60°C. With reversible rotation capabilities and a standard 1/2" diameter x 5" long shaft, the Nidec 1868 provides the versatility needed for various residential and commercial air conditioning and heat pump applications.

• Industry Compatibility: Functions as a high-spec S1-024-27622-000 replacement motor for seamless cross-referencing.
• Durable Construction: Features ball bearings and a TEAO enclosure to resist moisture and debris infiltration.
• Installation Versatility: Equipped with dual-end stud mounting and reversible rotation to accommodate diverse fan blade pitches.
• Thermal Protection: Integrated automatic reset thermal overload protects against winding failure during high-head pressure events.

What capacitor is required for the Nidec 1868?
This motor typically requires a 10 MFD / 370V capacitor for proper PSC motor operation and starting torque (check the nameplate for final confirmation).

Is this motor suitable for high-ambient environments?
Yes, it is rated for 60°C (140°F) ambient temperature, making it a rugged choice for rooftop units and hot climates.

Can I use this to replace a sleeve bearing motor?
Absolutely. Upgrading to ball bearings provides better longevity and allows for multi-angle mounting in various condenser configurations.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
