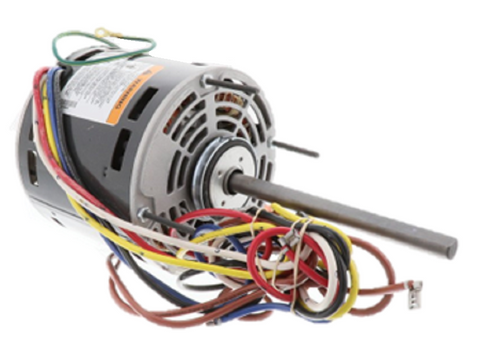

Nidec-US Motors 5841 Motor

The Nidec-US Motors 5841 is a commercial-grade 1/2 HP 1075 RPM condenser fan motor engineered for demanding HVACR service applications. This 4-speed HVAC blower motor operates on a 208-230V single-phase power supply and is built on a NEMA 48Y frame. Utilizing a Permanent Split Capacitor (PSC) design, the 5841 provides efficient 3.3-amp operation under full load, making it a reliable direct drive blower motor for residential and light commercial air handlers. As a direct 1083044 cross reference, it features a 1/2" diameter reversible shaft and self-aligning sleeve bearings to minimize mechanical friction. The Open Air Over (OAO) enclosure relies on the system's airflow for cooling, ensuring the motor maintains thermal stability during continuous duty cycles. Whether for OEM replacement or field retrofits, this motor supports flexible ring or stud mounting configurations to match varied housing requirements.

Key Benefits for Contractors:

• Multi-Speed Versatility: The 4-speed tap configuration allows for precise CFM adjustments to meet specific system static pressure requirements.
• Universal Mounting: Dual-mount capability with extended studs or 2.25-inch resilient rings simplifies installation in restricted blower compartments.
• Field Reversibility: Easy rotation reversal ensures compatibility with both clockwise and counter-clockwise fan wheel orientations.
• Enhanced Thermal Safety: Integrated automatic reset thermal overload protection prevents winding failure during restricted airflow conditions.
• Proven Durability: The 3.3 amp 230V HVAC motor utilizes high-grade steel frame construction and Class A insulation for long-term field reliability.

Common Questions:

Can the Nidec 5841 replace a 1/3 HP or 1/4 HP motor?
While you can technically upsize horsepower if the physical frame matches, it is critical to ensure the PSC motor capacitor is sized correctly and that the 1075 RPM matches the original spec to prevent over-amping through the fan law curve.

How do I reverse the rotation on this motor?
Rotation is changed by swapping the lead connectors as indicated on the motor's wiring diagram. Always verify rotation before securing the blower assembly.

Does this motor require a specific capacitor?
Yes, as a PSC motor, it requires a run capacitor (typically 5 MFD or 7.5 MFD at 370V/440V) to operate. Always check the nameplate for the specific rating required for the 5841 Nidec motor.
