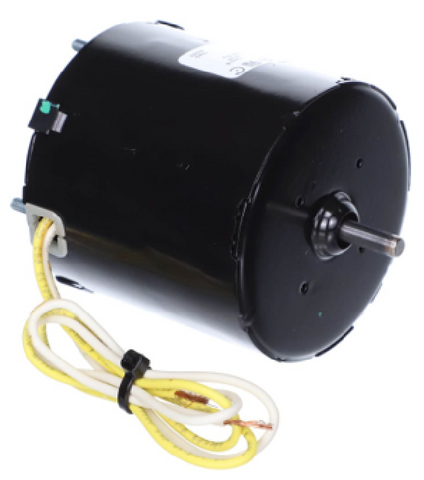

Nordyne 622097R Motor

The Nordyne 622097R Fan Motor is an OEM replacement motor designed for compatible Nordyne and Nortek HVAC equipment. The 622097R is identified as a 115V, 1680 RPM condenser fan motor. The factory description indicates a shaded-pole, approximately 0.004 HP, 4-pole, single-speed motor with CCWLE rotation.

This Nordyne condenser fan motor is designed for equipment requiring the specific electrical, rotational, and mechanical characteristics of the original motor. Correct rotation is particularly important because an incorrect motor rotation can significantly reduce airflow through the condenser coil.

When replacing the motor, do not select a replacement based on voltage or physical appearance alone. Verify the original part number, equipment model and serial number, voltage, RPM, rotation, mounting arrangement, shaft configuration, wiring, and fan application before ordering.

Key Benefits

• Manufacturer: Nordyne / Nortek
• Part Number: 622097R
• Product Type: HVAC Fan Motor
• Motor Type: Shaded Pole
• Horsepower: Approximately 0.004 HP
• Voltage: 115V
• Speed: 1680 RPM
• Poles: 4-Pole
• Speed Configuration: Single Speed
• Rotation: CCWLE – Counterclockwise Lead End
• Designed for compatible Nordyne and Nortek HVAC equipment

Common Questions

What is the Nordyne 622097R?
The 622097R is an OEM HVAC fan motor used in compatible Nordyne and Nortek equipment.

What does CCWLE mean on the 622097R motor?
CCWLE means counterclockwise when viewed from the lead end of the motor. Rotation must match the original motor for proper fan operation.

What does SHP mean?
SHP indicates a shaded-pole motor, a motor design commonly used in smaller HVAC fan applications.

Is the Nordyne 622097R a single-speed motor?
Yes. The factory description identifies the motor as 1S, or single speed.

What speed is the Nordyne 622097R?
The motor is specified at approximately 1680 RPM.

How do I verify that 622097R fits my equipment?
Confirm the complete equipment model and serial number and compare the original motor number, voltage, RPM, rotation, mounting, shaft, wiring, and fan configuration with the applicable factory parts breakdown before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

622097R is the cross for 622097
