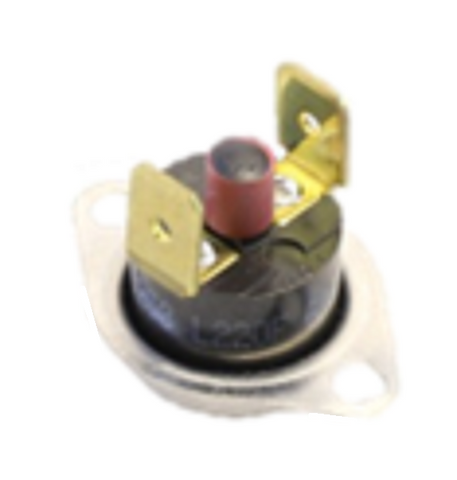

Nordyne 626354R Limit Switch

Upgrade or restore your HVAC system’s thermal management with the Nordyne 626354R Limit Switch. As a veteran-grade OEM replacement limit switch, this component is engineered for critical safety applications where precise high-temperature cutout is required to protect the heat exchanger. This manual reset limit switch features a fixed 220°F (L220F) trip point, ensuring the system remains offline until a technician can diagnose the root cause of the overheat condition—typically a failed blower motor, restricted airflow, or a clogged filter. Replacing the legacy Nordyne 626354, this updated "R" version utilizes standard 1/4" spade terminals for a secure, low-resistance connection. Its rugged 36TX16 style construction provides the durability required for intensive furnace and air handler duty cycles across Nordyne, Intertherm, and Miller platforms.

• Precise Thermal Protection: Set for a 220°F L220F rating to effectively monitor furnace plenum temperatures and prevent equipment failure.
• Technician-Required Reset: The manual reset design forces a system inspection after a lockout, preventing repetitive cycling under unsafe conditions.
• Broad OEM Compatibility: Serves as a direct Nordyne furnace part replacement for various gas and electric units, including major brands like Frigidaire and Tappan.
• Standardized Installation: Features a universal mounting footprint and 1/4" male connectors for rapid field replacement during service calls.

Is the 626354R a direct swap for the 626354?
Yes, the 626354R is the manufacturer-designated replacement for the older 626354. It maintains the same 220-degree trip threshold and physical dimensions.

What causes this 220-degree limit switch to trip?
In most HVAC applications, a thermal limit switch trips due to poor airflow. Technicians should verify air filter cleanliness, ensure evaporator coils are not impacted, and check that the blower motor is pulling the correct amperage.

Can I replace a manual reset switch with an automatic one?
No. Safety protocols require using the exact manual reset type specified by the OEM. Switching to an automatic reset can overlook dangerous overheating issues that require manual verification.

This product may contain materials regulated under California Proposition 65.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
