Nordyne M0088901R Motor

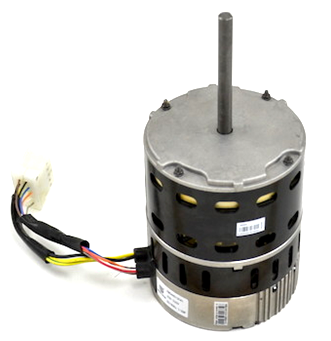

The Nordyne M0088901R is a heavy-duty, factory-authorized 1/2 HP ECM X-13 blower motor designed specifically for exact-fit replacement in Nordyne, Miller, and Intertherm air handlers and gas furnaces. Operating at 208-230V, this constant torque motor utilizes high-efficiency Electronically Commutated Motor (ECM) technology to provide superior airflow management compared to standard PSC motors. As an OEM Nordyne replacement motor, the M0088901R is programmed with the correct torque parameters and rotation settings to ensure seamless integration with the existing system control board. Techs should note the X-13 brushless DC design, which significantly reduces power consumption and cabinet noise during startup and operation. This 1,075 RPM rated motor features a standard 48-frame diameter and is engineered to handle the static pressure requirements of residential split systems and packaged units without the need for additional capacitor wiring.

Key Technical Benefits:

• Factory Programmed: Pre-configured ECM X-13 motor logic ensures the exact CFM delivery required for Nordyne-specific heat exchangers and coils.
• High-Efficiency Performance: The brushless DC architecture of this 208-230V blower motor reduces amperage draw, lowering operational costs for the end-user.
• Simplified Installation: Standard X-13 wiring harness compatibility allows for a "plug and play" swap-out of original M0088901R or equivalent motor units.
• Constant Torque Technology: Maintains consistent airflow across various ductwork restrictions to prevent coil freeze-ups or limit switch tripping.
• Quiet Operation: Precision-balanced rotor and soft-start programming minimize vibration and eliminate the "thump" associated with induction motors.

Technical FAQ:

Does this motor require a start or run capacitor?
No, since the Nordyne M0088901R is an ECM, the phase conversion is handled by the internal electronic control module, eliminating the need for external capacitors.

Is the M0088901R a variable speed motor?
While often called variable speed, it is technically a constant torque X-13 motor that uses discrete speed taps to adjust airflow based on the system's demand and static pressure.

Can I use this to replace a PSC motor?
This is an OEM Nordyne replacement for systems originally equipped with an X-13 motor. Converting a PSC system to ECM usually requires a different control board and wiring harness.
