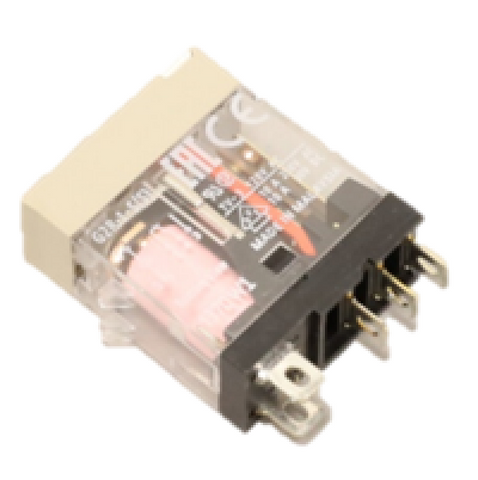

Omron G2R-1-S-AC24(S) Relay

The Omron G2R-1-S-AC24(S) is a professional-grade SPDT general purpose relay engineered for heavy-duty HVACR control circuits and industrial automation. Operating on a 24Vac coil voltage, this slim power relay features a 10A switching capacity, making it a reliable solution for managing inductive loads in air handlers and refrigeration systems. The integrated mechanical operation indicator provides immediate visual diagnostics for field technicians, while the plug-in terminals ensure rapid replacement during preventative maintenance cycles. Designed with a 10mm creepage distance between the coil and contacts, this component offers superior dielectric strength, minimizing the risk of internal shorts. Whether you are replacing a faulty 24V power relay or upgrading a control panel, the Omron G2R series provides the high-performance switching required for continuous operation in demanding environments. This slim power relay is compatible with standard P2RF sockets for seamless DIN rail integration.

• 10A Contact Rating: Robust SPDT relay contacts handle high-inrush currents common in compressor and motor control.
• Diagnostic Visibility: Mechanical indicator allows for quick troubleshooting without needing a multimeter for every check.
• Cadmium-Free Contacts: Environmentally conscious construction compliant with current electrical safety standards.
• Compact Footprint: Slim design maximizes rail space in crowded electrical enclosures.

Is the Omron G2R-1-S-AC24(S) compatible with DC systems?
No, this specific model is designed for 24Vac control circuits. Applying DC voltage to the coil will result in failure; verify your control transformer secondary output before installation.

Does this relay include the mounting socket?
The relay features plug-in terminals intended for use with a P2RF-05-E or equivalent socket, which must be purchased separately for DIN rail mounting.

Can this replace a lower amperage relay in an HVAC furnace board?
As long as the footprint matched and the coil voltage is 24Vac, the 10A rating provides a high ceiling for most light commercial and residential applications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
