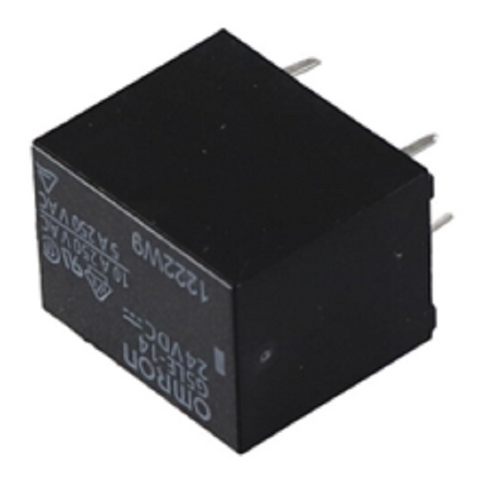

Omron G5LE-14-DC24 Relay

The Omron G5LE-14-DC24 is a standard SPDT (1-Form-C) cubic power relay engineered for reliable switching in HVAC control boards and commercial appliance circuitry. Operating on a 24VDC coil voltage, this 10A PCB power relay features a fully sealed construction, making it resistant to flux migration and environmental contaminants during the soldering process and field operation. Its low coil power consumption of approximately 400mW ensures thermal efficiency on high-density boards, while the silver tin oxide (AgSnO2) contacts provide excellent anti-welding properties under inductive loads. Designed with a universal footprint, the G5LE-14-DC24 is a direct replacement for many discontinued 10-amp cubic relays, offering high insulation resistance and dielectric strength required for UL and CSA compliance in power switching applications.

• Subminiature Cubic Design: Saves critical board space while maintaining 10-amp switching capacity.
• Fully Sealed Enclosure: Rated for protection against harsh environments and standard wash processes.
• High Sensitivity: Optimized 24VDC coil ensures reliable actuation even with voltage fluctuations.
• SPDT Contact Configuration: Supports both normally open and normally closed operations for versatile logic control.
• UL/CSA/VDE Certified: Meets rigorous safety standards for industrial power relays.

Is the G5LE-14-DC24 interchangeable with the G5LE-1-DC24?
The G5LE-14 designated version is fully sealed, whereas the G5LE-1 is flux protection only. They share the same footprint and electrical specs, but the -14 offers better environmental protection.

Can this relay handle 220V AC applications?
Yes, the contacts are rated for up to 250VAC at 10A (resistive), making it suitable for motor-starter logic and fan control.

What is the maximum ambient operating temperature?
This relay is rated for operation in ambient temperatures up to 85°C (185°F), essential for enclosed HVAC control cabinets.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
