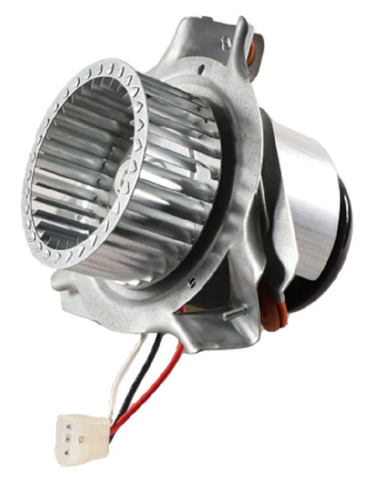

Packard 66765 Inducer Motor Kit

The Packard 66765 Inducer Motor Kit is an aftermarket furnace draft inducer motor and bracket assembly designed as a replacement for select Carrier, Bryant, and Payne applications.

The complete assembly includes the inducer motor, mounting bracket, blower wheel, and 3-prong Molex plug. The motor operates at 115V, 60 Hz and features two-speed operation at 3000/1900 RPM.

Electrical ratings are 0.90/0.48 amps and 22.8/12.3 watts. The motor features CWSE (clockwise shaft-end) rotation, ball bearings, an open enclosure, and automatic overload protection.

The Packard 66765 is listed as a replacement for Carrier 326628-765 and is also cross-referenced to J238-150-15216, J238-150-1521, and HC21ZE127A Jakel.

Before installation, verify the furnace model, original inducer assembly number, voltage, speed, rotation, electrical connector, mounting configuration, and blower wheel requirements.

Key Benefits

• Manufacturer: Packard
• Part Number: 66765
• Product Type: Inducer Motor Kit / Draft Inducer Assembly
• Voltage: 115V
• Frequency: 60 Hz
• Speed: 3000/1900 RPM
• Amperage: 0.90/0.48A
• Power: 22.8/12.3W
• Rotation: CWSE
• Two-speed operation
• Ball bearing construction
• Automatic overload protection
• Open motor enclosure
• Includes motor, mounting bracket, blower wheel, and 3-prong Molex plug
• Replacement for Carrier 326628-765
• Cross-referenced to J238-150-15216, J238-150-1521, and HC21ZE127A Jakel

Common Questions

What is the Packard 66765?
The Packard 66765 is a two-speed furnace draft inducer motor and bracket assembly used as an aftermarket replacement in compatible Carrier, Bryant, and Payne heating equipment.

What is included with the Packard 66765 kit?
The assembly includes the inducer motor, mounting bracket, blower wheel, and 3-prong Molex plug.

What are the electrical specifications?
The motor operates at 115V, 60 Hz, with 3000/1900 RPM two-speed operation and a rated current of 0.90/0.48 amps.

What Carrier part does Packard 66765 replace?
Packard 66765 is listed as a replacement for Carrier 326628-765. Additional cross-references include J238-150-15216, J238-150-1521, and HC21ZE127A Jakel.

What direction does the motor rotate?
The specified rotation is CWSE — clockwise shaft end.

Will the Packard 66765 fit my furnace?
Compatibility should be confirmed using the furnace model and original inducer assembly part number. Verify voltage, speed, rotation, mounting arrangement, electrical connector, and blower wheel before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

66765 is the cross for 326628-765
