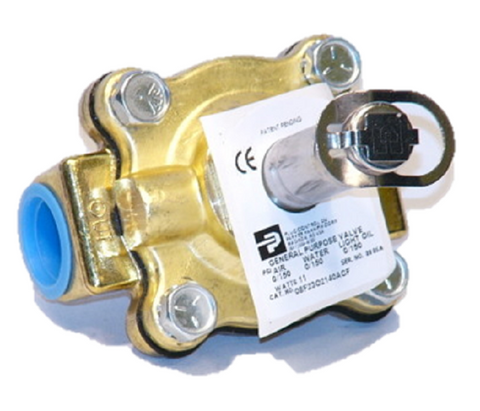

Parker 08F23O2140ACF Valve

The Parker 08F23O2140ACF is a high-performance 2-way normally open solenoid valve designed for reliable control in HVACR and industrial fluid systems. Built with a rugged brass body and featuring a 1/2" NPT connection, this valve is engineered for durability in demanding environments. With a 4.0 Cv flow coefficient and a maximum operating pressure differential (MOPD) of 150 PSI, it ensures consistent flow rates and pressure management. This unit utilizes a pilot-operated diaphragm mechanism, making it ideal for high-flow applications where low pressure drop is critical. The 08F23O2140ACF is compatible with standard 120V/60Hz AC power supplies, facilitating seamless integration into existing commercial refrigeration systems and process piping. Its FKM seals provide excellent chemical resistance and thermal stability, ensuring leak-free operation when handling water, light oils, or inert gases.

• High Flow Capacity: The 4.0 Cv rating supports high-volume throughput with minimal pressure loss across the valve.
• Normally Open Configuration: Ensures the valve remains open during power loss, a critical requirement for specific safety and circulation loops.
• Zero Differential Capability: Designed to operate reliably even at 0 PSI pressure backup, offering versatility in gravity-fed or low-pressure systems.
• Durable Brass Construction: Provides superior corrosion resistance and longevity compared to standard alloy valves.
• Simplified Field Service: The top-entry design allows for quick maintenance of internal components without removing the valve body from the line.

What is the maximum fluid temperature rating for this Parker solenoid valve?
The FKM (Viton) seals typically provide a fluid temperature range up to 180°F, though specific ambient conditions and coil insulation class should be cross-referenced for extreme environments.

Can this valve be mounted in any orientation?
For optimal longevity and to prevent sediment buildup in the pilot orifice, it is recommended to install the valve with the solenoid coil in the upright, vertical position.

Is the 08F23O2140ACF suitable for steam applications?
This specific brass model is optimized for water, air, and light oils; for dedicated steam service, a valve with EPDM or PTFE seating and a high-temperature coil is required.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
