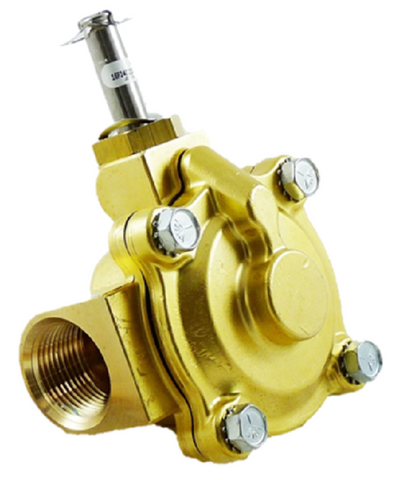

Parker 16F24C2164AAF Valve

The Parker 16F24C2164AAF is a high-flow, 2-way normally closed solenoid valve designed for demanding industrial and commercial HVACR applications. Built with a forged brass body and NBR (Nitrile) seals, this internally piloted valve is engineered to handle media including water, air, inert gas, and light oil. With a robust 13 Cv flow coefficient and a 1-inch NPT port size, it ensures minimal pressure drop across the system while sustaining a broad operating range. This Gold Ring Series unit requires a compatible Class F solenoid coil (typically 6W or 10W AC) and features a diaphragm offset pilot design to provide reliable shut-off performance. Optimized for high-capacity fluid control, it supports a minimum differential pressure of 5 psi and can manage up to 150 psi for air or 125 psi for water, making it a staple for contractors prioritizing Parker Hannifin reliability in the field.

• Forged Brass Construction: Provides superior structural integrity and corrosion resistance for long-term installation in diverse environments.
• High Flow Capacity: The 13 Cv rating allows for high-volume throughput, essential for large-scale secondary coolant and general-purpose fluid systems.
• Versatile Media Compatibility: Standard NBR seals are suitable for temperatures up to 180°F, covering air, water, and non-corrosive light oils.
• Internal Pilot Actuation: Utilizes system pressure to assist in opening, reducing the power consumption required by the solenoid.
• Field Serviceable: Compatible with 16F24C2164AAFR repair kits, allowing for quick diaphragm and seal maintenance without removing the valve body from the line.

What is the minimum pressure differential required for this valve?
As an internally piloted solenoid valve, the 16F24C2164AAF requires a minimum of 5 psi pressure drop between the inlet and outlet to successfully lift the main diaphragm and remain open.

Is the solenoid coil included with this part number?
No, the 16F24C2164AAF part number typically refers to the pressure vessel only. You must select and install a compatible Parker 24 Series coil based on your specific voltage requirements (e.g., 120V/60Hz or 24/60Vac).

Can this valve be used for steam or high-temperature glycol?
While excellent for water and standard HVACR secondary coolants, the NBR (Buna-N) seals are rated for a maximum fluid temperature of 180°F. For steam applications, a valve with EPDM or FKM (Viton) seals is required.
