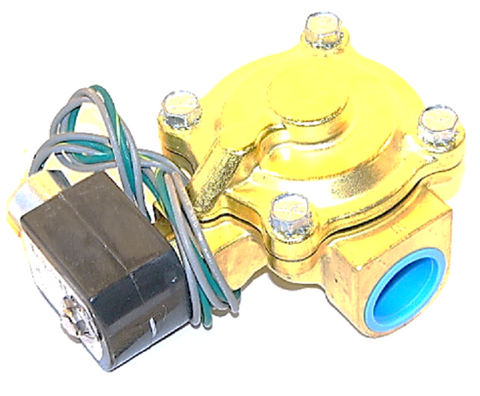

Parker 16F24C2164AAF4C01 Valve

The Parker 16F24C2164AAF4C01 is a high-performance 2-way normally closed solenoid valve engineered for precision fluid control in commercial HVACR and industrial plumbing systems. This 1-inch NPT internal pilot-operated valve features a robust forged brass body and NBR seals, making it optimized for water, air, and light oil media. Designed for reliable service with a 24VAC 60Hz coil, this Gold Ring series valve requires a minimum differential pressure of 5 PSI and is rated for a maximum operating pressure differential of 125 PSI for water applications (up to 150 PSI for air). With a high flow coefficient (13.0 Cv) and a Class F NEMA 4/4X rated coil, this unit ensures tight shut-off and high-capacity flow in demanding environments. The diaphragm offset pilot design facilitates consistent actuation in cooling tower loops and automated water treatment systems where thermal stability up to 180°F is required.

• High Flow Capacity: A 13 Cv flow factor ensures minimal pressure drop across 1-inch NPT lines.
• Industrial Durability: The NEMA 4/4X protection and brass construction provide excellent corrosion resistance in mechanical rooms.
• Pilot-Assisted Precision: The internally piloted diaphragm allows for efficient operation in high-flow manifolds.
• Versatile Media Compatibility: Rated for water, inert gases, and light oils with NBR seal material for long-term reliability.

What is the minimum pressure required for this solenoid valve?
This is a pilot-operated solenoid valve, meaning it requires a minimum pressure differential of 5 PSI across the inlet and outlet to actuate the diaphragm effectively.

Can the 16F24C2164AAF4C01 be mounted in any orientation?
For peak performance and to prevent debris accumulation in the pilot orifice, it is recommended to mount the solenoid coil vertical and upright in horizontal piping runs.

Is this valve suitable for high-temperature steam applications?
While excellent for water and light oils, this valve is rated for a maximum fluid temperature of 180°F and is not intended for high-pressure steam service which requires specialized seal materials.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
