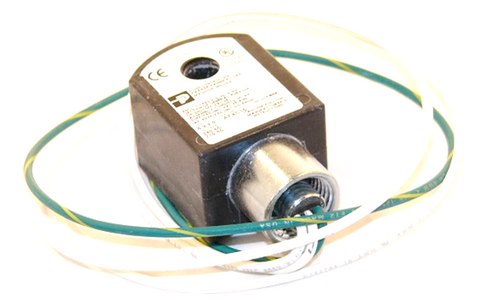

Parker AF4C15 Coil

The Parker AF4C15 is a high-performance replacement solenoid coil engineered for the Gold Ring series of valves, designed to handle continuous duty in demanding industrial and HVACR environments. This Parker Hannifin AF4C15 unit is built with Class F insulation, allowing it to withstand higher internal operating temperatures without degrading the electromagnetic windings. It operates at 240V/60Hz or 220V/50Hz, making it a versatile choice for cross-over electrical configurations. The 6-watt power consumption profile ensures efficient actuation while maintaining the necessary magnetic flux to drive the valve plunger reliably. With a NEMA 4 enclosure rating, this coil provides essential protection against windblown dust, rain, and splashing water, making it suitable for washdown areas and outdoor installations. The 1/2" NPT conduit connection and 18-inch lead wires facilitate a secure, code-compliant integration into existing control systems.

• Dual Frequency Compatibility: Rated for both 60Hz and 50Hz systems, providing flexibility for diverse job site power requirements.
• Rugged NEMA 4 Protection: Enclosure integrity prevents moisture ingress, crucial for preventing short circuits in humid or outdoor environments.
• Continuous Duty Rating: Thermal management allows the coil to remain energized for extended periods without the risk of mechanical failure or overheating.
• Standardized Integration: The 18-inch leads and 1/2-inch conduit hub ensure straightforward replacement in standard Gold Ring valve bodies.

What is the primary cause of coil burnout in these units?
Burnout is typically caused by applying incorrect voltage or operating the coil without the valve plunger fully seated in the magnetic circuit. Always verify that the input voltage matches the 240V/220V rating and that the valve is mechanically sound.

Can the AF4C15 be used in washdown environments?
Yes, the NEMA 4 rating indicates the enclosure is designed to protect against splashing water and hose-directed spray, provided the conduit connection is properly sealed.

Does this coil support DC current applications?
No, the AF4C15 is specifically wound for AC current as indicated by the 60Hz/50Hz specifications. Attempting to use this on a DC circuit will lead to immediate failure.
