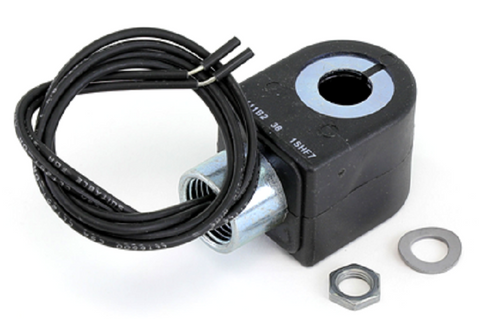

Parker C111B2 Coil

The Parker C111B2 is a high-performance replacement solenoid coil engineered for the Skinner Valve 7000 Series and other Chart 7 compatible pressure vessels. Designed for industrial-grade reliability, this 24VAC solenoid coil operates at 10 watts with a 60Hz frequency, ensuring stable actuation for critical fluid control applications. Constructed with Class F insulation and featuring a NEMA 4X rated enclosure, the C111B2 is built to withstand demanding environments, offering superior moisture resistance and thermal protection. For simplified field installation, it includes a 1/2" NPT conduit connection pre-wired with 18-inch flying leads. Whether you are performing routine maintenance or emergency HVAC coil replacement, this component provides the exact electrical specifications required to maintain system integrity and prevent core tube overheating in high-cycle fluid control systems.

Key Benefits

• Industrial Durability: NEMA 4 and 4X ingress protection makes this coil suitable for washdown environments and corrosive atmospheres.
• Thermal Management: Class F high-temperature insulation ensures stable performance during continuous duty cycles.
• Standardized Integration: The 1/2" NPT conduit and 18" leads facilitate quick swap-outs in existing pneumatic and fluid regulation setups.
• Efficient Power Draw: 10W power consumption provides sufficient magnetic force for reliable valve opening/closing without excessive energy waste.

Common Questions

What valves are compatible with the Parker C111B2?
This coil is specifically designed for Parker Skinner 7000 Series valves and any vessel identified as Chart 7/Reference 7 compatible. Always verify the "Coil Ref" on the valve body nameplate before installation.

Can this coil be used in outdoor or wet locations?
Yes, the Parker C111B2 features a NEMA 4X rated enclosure, providing protection against windblown dust, rain, and hose-directed water, making it a reliable choice for car wash applications and outdoor HVAC units.

Is the polarity important when wiring the 18-inch leads?
Since this is a 24VAC solenoid coil, there is no polarity to observe for the two lead wires. However, ensure the system is properly grounded via the conduit connection to meet local electrical codes.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
