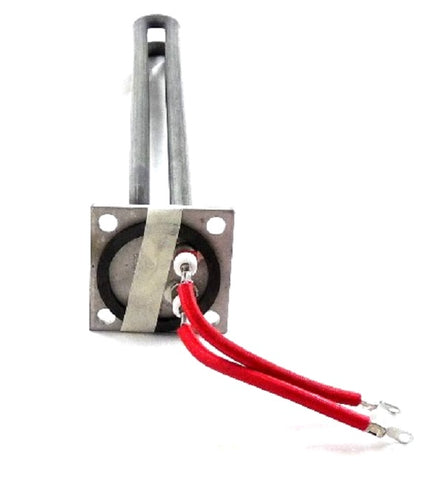

Raypak 001802F Heating Element

The Raypak 001802F Heating Element is a heavy-duty, field-replaceable 11KW 240V electric heater element engineered for high-demand hydronic and pool applications. Specifically designed for the Raypak ELS 1102 series pool heaters, this square flange heating element features a 3" x 3" mounting plate with a 4-bolt pattern, ensuring a pressurized, leak-proof seal when seated with the included gasket. With an 8.5-inch immersion depth, the replacement 001802F element provides rapid thermal transfer for consistent water temperature regulation. For contractors performing routine maintenance or emergency repairs, this Raypak 11kW heater part is the direct OEM solution to restore BTU output and system efficiency. Built to withstand the corrosive effects of pool chemistry and thermal cycling, this 11KW 230V/240V immersion element ensures reliable continuity in domestic and commercial heating loops.

• Direct OEM Compatibility: Precise fitment for Raypak ELS Series 1102-2 heaters ensures easy drop-in replacement.
• High Thermal Capacity: 11,000-watt rating delivers rapid temperature recovery for large bodies of water.
• Complete Installation Kit: Includes the essential square flange gasket to prevent bypass leaks and ensure a tight seal.
• Contractor-Grade Durability: Robust construction designed to resist scaling and chemical degradation in harsh water environments.

What are the electrical requirements for this element?
This is an 11KW element rated for 240V (also compatible with 230V systems). Technical staff should verify amperage draws and breaker sizing against the heater's nameplate before installation.

Does this element include the mounting hardware?
The 001802F kit includes the specialized square flange gasket. The existing 4-bolt mounting hardware is typically reused, provided it is free of corrosion or fatigue.

How do I confirm if my ELS heater needs this specific 11KW part?
Check the heater model number. This element is the standard specification for the 1102 sub-series; however, always measure the immersion length and check the kW rating on the flange of the old element to ensure a match.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
