Raypak 005086B Controller

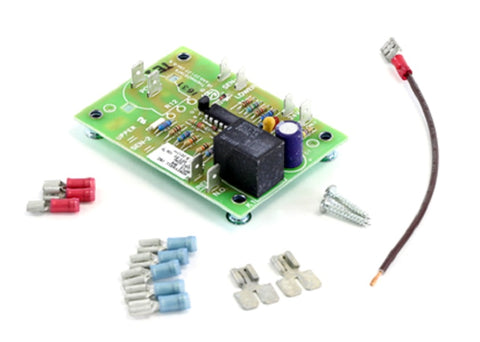

The Raypak 005086B Controller is a high-performance IID Versa PC board engineered for precise ignition control and temperature management in atmospheric heaters. As a veteran-grade Raypak replacement part, this digital control board features an integrated ignition module designed for Raypak Versa IID model pool and spa heaters. It supports 3-wire temperature sensors and micro-processor-based logic to maintain tight setpoint tolerances, preventing frequent cycling while ensuring optimal thermal efficiency. This HVACR control board is a direct replacement for Raypak 155A, 155B, and 155C series units. For technicians installing this on propane pool heaters, ensure you follow the mechanical protocol of breaking the specific propane tab on the PCB to correctly calibrate the ignition timing and safety lockouts. The board includes a clear interface for 7-pin remote wiring, facilitating seamless integration with external automation systems.

• Precise Temperature Regulation: Utilizes advanced logic to monitor water inlet flow and maintain accurate pool or spa setpoints.
• Direct OEM Compatibility: Specifically designed for Raypak Versa IID models including 055A, 055B, 105A, and 130 series heaters.
• Diagnostic LED Interface: Features integrated LEDs to display service codes, assisting with rapid troubleshooting of high-limit or flow issues.
• Integrated Ignition Logic: Combines temperature sensing and IID ignition control into a single, robust PC board for simplified field replacement.

How do I configure the Raypak 005086B for a propane heater?
To use this digital controller with propane (LPG), you must use pliers to break the designated propane tab on the PCB before installation. This adjusts the ignition trial time to meet safety specifications for liquid propane fuel.

What does the "Remote" status on the LCD display indicate?
When the Raypak 005086B PC Board displays "Remote," it indicates the heater is being controlled by a 2-wire or 3-wire external automation system via the 7-pin interface harness.

Can I use this board to replace a 2-wire sensor controller?
No, the 005086B is specifically designed for 3-wire temperature sensor configurations found in Versa IID digital models. Always verify the sensor wire count before attempting a swap to ensure data logic compatibility.
