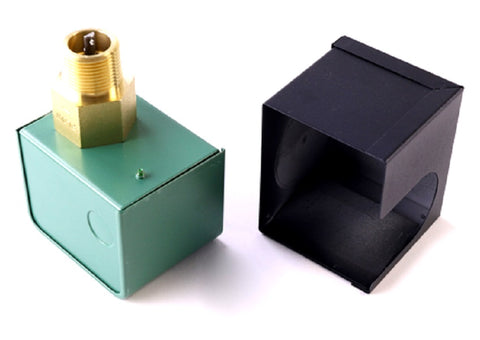

Raypak 007142F Flow Switch

The Raypak 007142F 1" Industrial Flow Switch is a critical safety component designed for precise water flow monitoring in commercial and industrial boiler systems. Engineered for high-temperature hydronic applications, this paddock flow switch utilizes a paddle-style mechanism to verify the required flow rate before allowing the burner to fire, preventing dry-fire conditions and heat exchanger damage. This authentic Raypak replacement part features a durable NEMA construction, making it suitable for demanding mechanical room environments. It is compatible with 1-inch NPT piping and is frequently used in Raypak Hi Delta and Raypak Rheem boiler maintenance routines. The 007142F provides reliable SPDT switching action, allowing for seamless integration into the unit's safety loop or external alarm circuits. Installing this industrial flow switch ensures your system maintains hydraulic balance and operational safety, meeting stringent code requirements for commercial heating and pool heating installations.

• Industrial-Grade Sensitivity: Calibrated for precise flow detection to ensure safe combustion cycles in high-output boilers.
• Durable Construction: Features a robust paddle design and housing resistant to boiler system vibration and temperature fluctuations.
• Universal Integration: Standard 1" NPT connection allows for straightforward Raypak flow switch replacement and installation.
• SPDT Switch Logic: Provides versatile wiring options for both normally open or normally closed circuit configurations.
• System Protection: Primary defense against low-flow scenarios that cause rapid cycling and mechanical fatigue.

What is the maximum operating pressure for the 007142F?
This industrial switch is rated for standard commercial hydronic pressures, typically up to 150 PSI, though system-specific limits should be verified against the boiler's nameplate.

Can the paddle be trimmed for different pipe sizes?
While this model is optimized for 1" piping, technicians often verify paddle clearance to prevent binding; however, it is specifically engineered for 1-inch industrial applications to maintain accurate setpoints.

How do I troubleshoot a 'No Flow' error code with this switch?
Verify the paddle isn't obstructed by debris, check for continuity across the COM and NO terminals during pump operation, and ensure the arrow on the housing aligns with the direction of water flow.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
