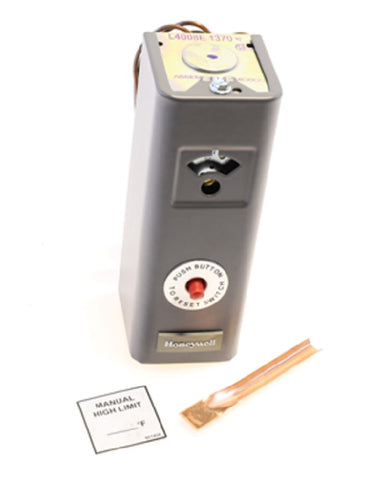

Raypak 007144F Limit Switch

The Raypak 007144F Limit Switch is a critical safety component designed for precise temperature regulation in Raypak commercial pool heaters and boiler systems. Specifically engineered as a manual reset limit switch, this part monitors internal water temperature and interrupts the control circuit if thermal levels exceed the 100°F to 240°F operating range. This high-limit protection prevents heat exchanger damage caused by overheating or flow restrictions. Utilizing a standard SPST configuration, the 007144F ensures reliable continuity within the 24V or 120V control loop, making it a direct replacement for failed Raypak high limit sensors in Digital and Millivolt atmospheric heaters. Its robust construction resists corrosion common in mechanical rooms, ensuring long-term stability and accurate trip points. For contractors, verifying the specific temperature set point and mounting orientation is essential to maintain UL safety certifications and system integrity during service calls on Raypak series 206A-406A or larger commercial units.

Key Technical Benefits

• Precision Thermal Monitoring: Maintains a strict safety ceiling between 100-240 degrees Fahrenheit to prevent dry-fire conditions.
• Manual Reset Security: Requires a technician to manually intervene after a trip, ensuring the underlying cause of overheating is addressed.
• Broad Compatibility: Seamlessly integrates with Raypak heater models including standard Digital, Low NOx, and ASME commercial variants.
• OEM Reliability: Built to meet original HVACR equipment manufacturer specifications for exact fitment and electrical calibration.

Common Questions

What causes a manual reset limit switch to trip repeatedly?
Frequent tripping is usually indicative of low water flow through the heat exchanger, a failing bypass valve, or heavy scale buildup restricting heat transfer. Always check the pump and filter status before replacing the switch.

Can this switch be used in place of an automatic reset limit?
No. Manual reset switches are safety-critical components. Replacing a manual reset with an automatic reset can create a dangerous cycling condition, bypassing the safety protocol intended to alert the operator to a thermal malfunction.

How do I verify if the 007144F is defective?
Using a multimeter set to ohms, check for continuity across the terminals while the system is cool and the button is depressed. If the circuit remains open after a reset, the internal bimetal disc has likely failed.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
