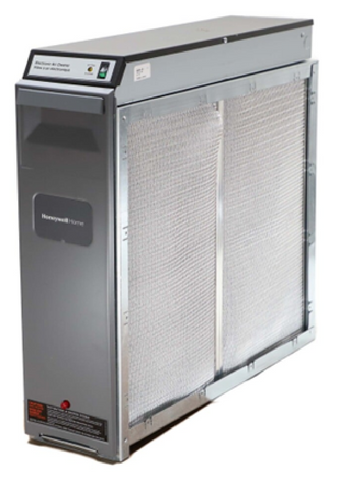

Resideo F300E1035 Electronic Air Cleaner

The Resideo F300E1035 Electronic Air Cleaner is a high-volume filtration solution designed for residential and light commercial forced-air systems. Operating on a 120 Vac power supply, this 20" x 25" duct-mounted unit provides a 2000 CFM maximum airflow capacity with minimal pressure drop. Functioning as a direct replacement for 20C26S-01002, it utilizes a multi-stage process where large particles are caught by pre-filters before smaller contaminants are ionized and captured on aluminum collector cells. This model includes a performance-enhancing post-filter to maximize the MERV 14 equivalent efficiency, effectively removing airborne particles as small as 0.3 microns. For technicians, the solid-state power supply ensures consistent ionization spikes, while the LED system status indicator simplifies troubleshooting and verifies that the cells are energized and functioning to maintain indoor air quality across the HVAC system.

Key Benefits

• High-Efficiency Filtration: Captures up to 99% of airborne particles, including dust, smoke, and mold spores.
• Low Static Pressure: Engineered to maintain system efficiency without significantly impacting blower motor performance.
• Eco-Friendly Design: Features washable cells that eliminate the need for frequent replacement media.
• Rugged Construction: Durable zinc-coated cabinet resists corrosion in demanding mechanical room environments.
• Integrated Safety: Built-in airflow sensor and interlock switch ensure safe operation during maintenance.

Common Questions

How do I clean the collector cells in the F300E1035?
Cells should be washed every 6 to 12 months in a dishwasher or soaked in a mild detergent solution to maintain optimal charging capabilities.

Can this unit be installed in any orientation?
Yes, the F300E1035 is designed for duct mounting and can be configured for horizontal or vertical airflow depending on the return air plenum layout.

What is the purpose of the post-filter included with this model?
The post-filter provides an extra stage of mechanical filtration to capture any particle "blow-off" and ensure maximum distribution of clean air.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

This item is not eligible for free shipping and must be shipped via trucking. Please contact us for a freight quote.
