Resideo VR8204A2076 Gas Valve

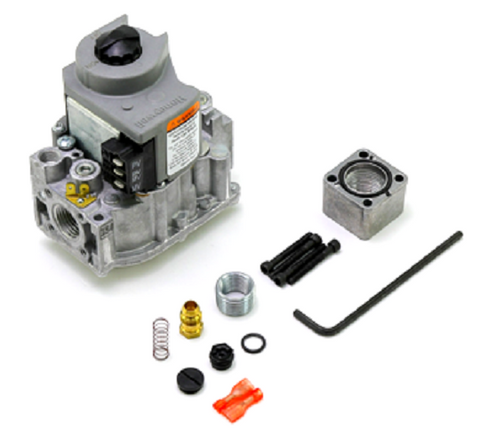

The Resideo VR8204A2076 Gas Valve is an industrial-grade 1/2" intermittent pilot dual automatic combination valve engineered for 24 Vac gas-fired appliances. This single-stage gas control features a standard opening characteristic with a factory-set 3.5" WC regulator setting, providing a capacity range of 20 to 200 CFH. Built for high-demand environments, it utilizes a servo pressure regulator and two automatic operators to maintain stable gas flow. As a direct replacement for 624500R and 240007039, it ensures seamless mechanical compatibility during field retrofits. The unit includes a 1/8" NPT pressure tapping with plug and a 1/4" compression fitting for the pilot outlet. For maximum site flexibility, this intermittent pilot ignition valve comes packed with a 3/4" straight flange, a 1/2" x 3/8" reducer bushing, and a comprehensive LP conversion kit for propane transitions.

Key Benefits for HVACR Contractors

• Broad Compatibility: Serves as a primary service replacement for Honeywell legacy models and various OEM 24V intermittent pilot systems.
• Dual Safety Shutoff: Engineered with two solenoid-operated valves to ensure positive gas shutoff upon loss of power or flame signal.
• Field-Adaptable: Included natural gas to LP conversion kit allows technicians to configure the valve for different fuel requirements on-site.
• Precision Regulation: The integrated servo-operated regulator maintains consistent outlet pressure despite fluctuations in inlet supply.
• Flexible Mounting: Approved for installation at any angle from 0 to 90 degrees from the upright position.

Common Questions

Which ignition modules are compatible with the VR8204A2076?
This valve is designed to interface with S8600, S8610, and S8670 series Resideo/Honeywell ignition modules.

Does this valve support high-BTU applications?
Yes, it is rated for up to 150,000 BTU/hr at 1" WC pressure drop, making it suitable for larger residential and light commercial furnaces.

Can this valve be used with standing pilot systems?
No, the VR8204A2076 is specifically for intermittent pilot applications and does not have the manual reset or thermocouple connection required for standing pilot units.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
