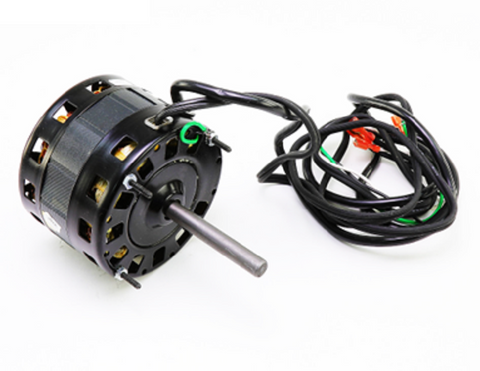

Reznor 196245 Motor

The Reznor 196245 Motor is a genuine OEM replacement fan motor specifically engineered for high-performance use in Reznor UDAP, UDAS, UDX, and UBX series unit heaters. This 115v 1/6hp 1050rpm motor features an open air-over (OAO) enclosure and is built to sustain the demanding duty cycles of industrial and commercial HVAC environments. Operating at a standard 60Hz single-phase frequency, this direct drive blower motor ensures precise airflow across the heat exchanger, assisting in optimal combustion ventilation and thermal efficiency. The Reznor 196245 utilizes a permanent split capacitor (PSC) design, providing reliable torque and energy-efficient operation for heater sizes ranging from 150 to 200 MBH. As a critical system component, this industrial HVAC fan motor eliminates universal fitment issues by matching exact manufacturer specifications for shaft length and mounting bolt patterns, reducing installation time for contractors and maintenance teams.

• Direct OEM Compatibility: Engineered for seamless integration with Reznor UDAP-150, UDAP-175, and UDAP-200 models, ensuring no field modifications are required.
• Optimized Airflow: The 1050 RPM speed calibration maintains the specific static pressure needed for safe unit heater operation and heat distribution.
• Durable PSC Design: Features a permanent split capacitor architecture for improved electrical efficiency and consistent startup torque.
• Thermally Protected: Built-in automatic thermal overload protection prevents winding damage during restricted airflow or high-ambient conditions.

Which Reznor unit heater models are compatible with the 196245 motor?
This motor is the primary replacement for 150, 175, and 200 unit sizes within the UDAP, UDAS, UDX, and UBX series. Always verify your specific model and serial number to ensure a correct match.

Does this motor include the run capacitor?
Most technicians recommend replacing the run capacitor (typically 7.5 MFD/370V) when installing a new PSC motor to prevent premature failure. Check your existing capacitor’s rating during service.

What is the rotation direction of the Reznor 196245?
This motor is specified for Counter-Clockwise Lead End (CCWLE) rotation to accommodate standard Reznor fan blade configurations for proper air draw.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
