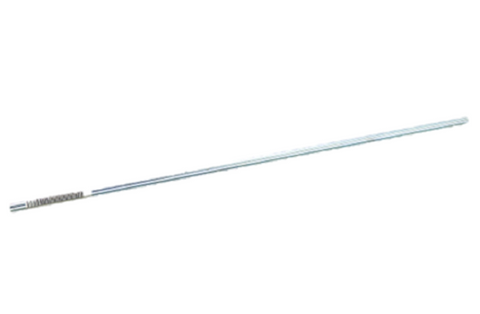

Schneider Electric (Barber Colman) AM-125 Damper Rod

The Schneider Electric (Barber Colman) AM-125 Damper Rod is a critical hardware component for HVAC damper linkage assemblies, designed to provide rigid mechanical connection between damper actuators and shaft crank arms. Measuring 5/16" diameter x 20" length, this zinc-plated steel rod offers high corrosion resistance and structural integrity for reliable airflow control in high-cycle commercial environments. As a direct replacement for Barber Colman A-3768, it ensures seamless integration with legacy systems including MA-series and MP-series actuators. This rod is precision-engineered to support up to a 30-pound load capacity, preventing the bowing or flexing often seen with inferior generic alternatives. Whether you are installing a new linkage kit or performing field maintenance, the AM-125 provides the exact tolerances required for 90-degree damper rotation, ensuring the actuator reaches its electrical limits without mechanical binding. This industrial-grade control hardware is essential for maintaining accurate building automation system (BAS) air mixing and ventilation performance.

• Direct OEM Compatibility: Serves as the designated replacement for A-3768, maintaining original equipment specifications.
• Enhanced Durability: Zinc-plated finish protects against moisture and oxidation in damp plenum environments.
• Optimized Dimensions: The 5/16" x 20" profile provides the ideal balance of rigidity and weight for HVAC dampers.
• High Load Rating: Engineered to handle a 30 lb load capacity for heavy-duty commercial louver applications.
• Precision Control: Eliminates mechanical play in the damper linkage, ensuring accurate stroke and airflow modulation.

Common Questions

Is the AM-125 compatible with non-Schneider actuators?
Yes, while designed for Barber Colman and Schneider Electric systems (like the AM-111 crank arm), this 5/16" damper rod is compatible with any linkage connector or ball joint designed for a 5/16-inch diameter rod.

Can this rod be cut to a shorter length?
Yes, the AM-125 can be field-cut by a technician to fit specific clearance requirements within the ductwork or actuator mounting space, provided the zinc plating is protected at the cut point.

What is the primary benefit of the 5/16" diameter over smaller rods?
The 5/16" diameter prevents the rod from bending under the torque generated by high-power spring-return actuators, ensuring the damper closes fully and maintains tight shut-off.
