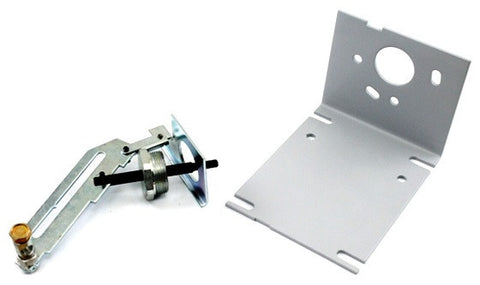

Schneider Electric (Barber Colman) AM-764 Kit

When you're outfitting commercial HVACR units with Schneider Electric damper linkage kits, the Barber Colman AM-764 is the industry standard for bridging the gap between a damper actuator and the drive shaft. This heavy-duty damper linkage kit is engineered for technicians who need a reliable mechanical connection when direct coupling isn't an option. The AM-764 damper linkage kit features a robust actuator crankarm and high-grade ball joints designed to withstand the high-torque demands of HVAC damper control systems without slipping or mechanical fatigue. By maintaining precision in the linkage stroke, you ensure that airflow modulation remains accurate, protecting the system from the energy losses associated with poorly sealed dampers. This kit is a direct OEM replacement part, ensuring that the critical alignment between the motor and the damper blades is maintained for optimal static pressure control and long-term mechanical durability in air handling applications.

• Engineered for Durability: The heavy-duty actuator crankarm and linkage components are built for continuous operation in high-cycle commercial environments.
• Precise Airflow Control: Facilitates exact damper positioning to maintain balance and efficiency in complex HVAC damper control sequences.
• Universal System Compatibility: Designed for seamless integration with Schneider Electric and legacy Barber Colman actuators, providing a versatile solution for field retrofits.
• Reduced Mechanical Wear: Precision-machined ball joints minimize friction and eliminate "slop" in the linkage, preventing premature wear on the actuator motor.

Is the AM-764 compatible with older Barber Colman actuators?
Yes, this kit is specifically designed to support both modern Schneider Electric models and legacy Barber Colman hardware, making it a go-to for servicing older air handling units.

What is the primary function of the AM-764 linkage kit?
It provides the necessary mechanical interface (crankarms and ball joints) to translate the rotational movement of a damper actuator into the linear or offset motion required to drive the damper shaft.

Does this kit include the linkage rod?
Typically, 5/16" (8 mm) rods are field-supplied to match the specific distance between the actuator and the damper shaft, while this kit provides the critical coupling hardware.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
