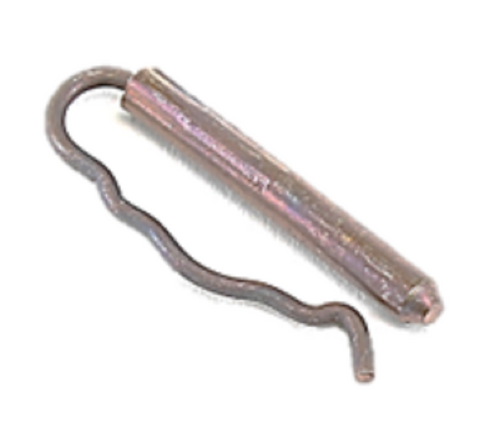

Schneider Electric (Barber Colman) BDHE-136 Valve Connector Pin

The Schneider Electric (Barber Colman) BDHE-136 Valve Connector Pin is a critical hardware component engineered for high-stability linkage between HVAC actuators and ball valve bodies. As a direct OEM replacement for ADFA-20 and ADFA-20-1, this pin ensures precise torque transfer and mechanical alignment within hydronic control systems. Designed for demanding commercial environments, the BDHE-136 facilitates the seamless field-mounting of both spring return and non-spring return actuators onto Schneider Electric VB-2000 series valve bodies.

For service technicians and mechanical contractors, maintaining the integrity of the actuator-to-valve interface is essential to prevent valve binding or inconsistent flow control. The BDHE-136 features a robust metal construction to resist shear forces and environmental corrosion, common causes of actuator failure in high-cycle VAV box or fan coil unit applications. Utilizing this genuine Barber Colman replacement part guarantees dimensional accuracy, preventing the common "play" in linkage that leads to premature gear wear and loss of proportional control accuracy.

• Direct OEM Compatibility: Engineered as the exact replacement for ADFA-20 series pins to maintain system specifications.
• Precision Mechanical Linkage: Ensures 100% engagement between the actuator drive nut and the valve stem for zero-slip operation.
• Simplified Installation: Standardized dimensions allow for rapid field replacement during HVAC valve maintenance routines.
• Industrial Durability: Rugged design withstands the high-torque demands of hydronic balancing and automated temperature regulation.

Common HVAC Connector Pin Questions

How do I know if my valve connector pin needs replacement?
If you observe actuator movement without corresponding valve stem rotation or hear clicking sounds during valve operation, the pin may be sheared or worn. Visual inspection often reveals bending or significant scoring on the BDHE-136 pin surface.

Will the BDHE-136 work with older Barber Colman ADFA-20 setups?
Yes, the BDHE-136 is the official direct replacement valve pin for the ADFA-20 and ADFA-20-1. It is designed to fit the existing linkage kits without requiring modification to the actuator mounting plate.

Can I use an aftermarket pin instead of the BDHE-136?
Using generic pins often results in misalignment or loose tolerances. This can cause the valve actuator to hunt or stall, leading to uneven hot or chilled water flow and increased energy consumption across the HVAC system.
