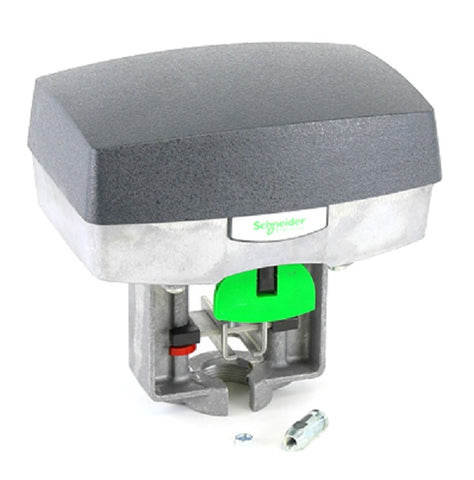

Schneider Electric (Barber Colman) M800A-VB Actuator

Schneider Electric (Barber Colman) M800A-VB Actuator

  • $376.10

Schneider Electric (Barber Colman) M800A-VB Forta Globe Valve Actuator, 24V, Floating or Proportional Controls, 0 to 10Vdc, 2 to 10Vdc or 4 to 20mA ( with 500 Ohm Resistor ), 2 to 10Vdc Feedback, 180 Lbf (Force ), Screw Mount


Ask a Question
  • What are these used for

    Forta M400A (VB) / M800A (VB) /M1500A (VB) series NonSpring Return linear actuators are available in two styles, U-Bolt
    Mount style, mounts to Schneider Electric globe valves with AV811 linkage kits for mounting to VB-7xxx valves or AV-812 for
    mounting to VB-8xxx, or VB-9313-0-5-xx valves. Screw Mount
    style, screws directly to the bonnet nut on VB-7xxx valves (no
    adapter required).
    Applications include chilled or hot water and steam. Field selectable input signals include reverse and direct acting, Floating or
    Proportional 0-10, 2- 10 vdc or 4-20 ma with 500 ohm resistor
    (supplied) plus proportional sequencing input signal ranges.
