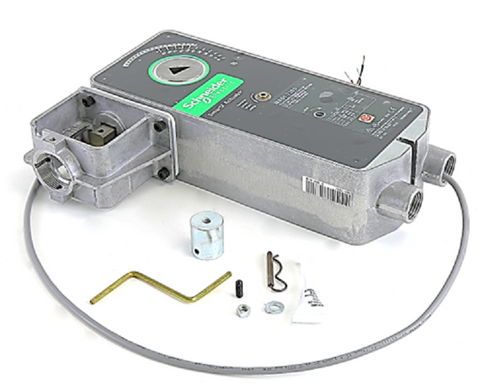

Schneider Electric (Barber Colman) MA51-7203 Actuator

The Schneider Electric (Barber Colman) MA51-7203 is a direct-mount DuraDrive actuator engineered for high-performance two-position (on/off) control in demanding HVACR applications. Operating on 24V AC/DC, this spring return actuator provides a robust 220 lbf (979 N) force, making it a reliable solution for driving VB-7xxx and VB-8xxx globe valves without the need for complex linkages. Its internal spring return fail-safe mechanism ensures the valve returns to a known position during power loss, protecting critical systems from thermal or pressure irregularities.

Built with a NEMA 2 (IP54) rated polymer housing, the MA51-7203 is suitable for plenum installations and features overload protection throughout its stroke to prevent motor burnout. The direct-coupled design and integral linkage simplify the replacement of legacy Barber Colman units, while the manual override crank allows technicians to facilitate efficient pre-loading and manual positioning during commissioning. Designed for hot water, chilled water, and steam applications up to 366°F, this actuator is a standard choice for Building Automation Systems (BAS) requiring linear valve actuation.

• Direct Mount Integration: Mounts directly to globe valves ranging from 1-1/4" to 2" (VB-7xxx) or up to 5" (VB-8xxx), eliminating the need for external linkage kits.
• Fail-Safe Security: Reliable spring return operation ensures safe shutdown or startup positions upon power failure.
• High Force Output: Delivers 220 lb force to overcome high close-off pressures in steam and hydronic circuits.
• Durable Enclosure: NEMA 2 housing provides moisture resistance and is rated for air plenum environments.
• Simplified Setup: Includes a manual override and a 3-foot appliance cable for streamlined field installation.

Is the MA51-7203 compatible with older VB-9xxx valves?
Yes, this actuator can operate discontinued 1-1/2" to 4" VB-9xxx globe valves, providing a modern replacement for legacy Barber Colman setups.

Does this model support proportional or floating control?
No, the MA51-7203 is specifically a two-position (on/off) actuator. For modulating or floating requirements, technicians should look to the MS51 or MF51 series counterparts.

What is the maximum fluid temperature this actuator can handle?
It is rated for use in systems with fluid temperatures up to 366°F (186°C), provided the correct valve body is utilized.
