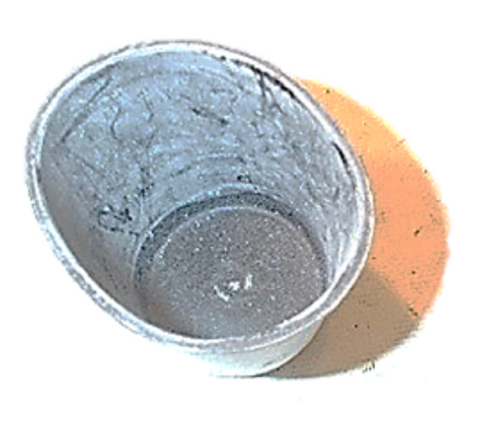

Schneider Electric (Barber Colman) N800-9422 Diaphragm

The Schneider Electric N800-9422 Diaphragm is a critical replacement component for Barber Colman 2472 series pneumatic actuators. Engineered for high-cycle reliability in HVAC terminal unit control, this actuator diaphragm is functionally identical to the legacy 21-840 part number. Field technicians often encounter these in variable air volume (VAV) boxes and damper controls where precise modulation is required. This pneumatic replacement part is crafted from durable elastomers designed to withstand constant pressure flux without losing its tensile integrity. When conducting HVAC pneumatic repairs, utilizing an OEM-spec diaphragm ensures the actuator maintains its specific spring range and stroke capacity. Integration of this commercial HVAC diaphragm restores the original pneumatic seal, preventing air leaks that cause system hunting or sluggish response times in building automation systems.

• Direct Cross-Reference: 100% compatible with Barber Colman 21-840 specifications for seamless field replacement.
• Durable Elastomeric Construction: Designed to maintain flexibility across varying duct temperatures.
• Restored Actuator Response: Eliminates bypass leakage to ensure accurate damper positioning and airflow control.
• Broad Integration: Specifically formatted for the 2472 Series pneumatic actuator housings.

How do I confirm if the N800-9422 is the correct replacement for my actuator?
This diaphragm is the designated replacement for Barber Colman 2472 series units. If your existing maintenance log or part stamp shows 21-840, the N800-9422 is the exact direct-fit equivalent.

What are the signs of a failing pneumatic actuator diaphragm?
Look for "hissing" at the actuator housing or a damper that fails to reach its full stroke despite receiving full signal pressure. These symptoms typically indicate a perforated or dry-rotted diaphragm.

Can this diaphragm be used in high-heat applications?
The N800-9422 is rated for standard commercial HVAC environments; however, consistently exceeding rated ambient temperatures may accelerate wear. Always verify your specific environment against Schneider Electric technical bulletins.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
