Schneider Electric (Erie) 100-081 Repair Kit

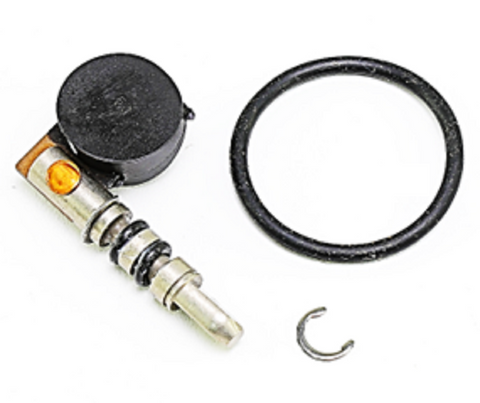

The Schneider Electric (Erie) 100-081 Repair Kit is a field-proven solution for restoring high-performance operation to PopTop Series valves without requiring full body replacement. This heavy-duty rebuilding kit is specifically engineered for 2-way valve bodies featuring a 7.5 Cv flow coefficient. It provides local compatibility for 3/4" Sweat and NPT configurations, as well as 1" Sweat connections, making it a versatile staple for industrial and commercial hydronic applications. Designed for both general and steam service, this kit handles low-pressure steam up to 15 PSI and fluid temperatures ranging from 32°F to 250°F when used with VS series bodies. The valve body rebuild kit includes a precision-machined stem and paddle assembly, a high-temperature EPDM O-ring, and a secure retaining ring to ensure a leak-free seal and consistent shut-off. By replacing internal components, technicians can resolve issues like seat leakage or mineral buildup while maintaining the integrity of the original Erie zone valve installation.

• Precise Flow Control: Specifically calibrated for 7.5 Cv applications to maintain system balance and hydraulic stability.
• Robust Steam Rating: Certified for steam service up to 15 PSI, ensuring durability in demanding mechanical rooms.
• Simplified Maintenance: Facilitates rapid internal overhauls of PopTop series 2-way 3/4" and 1" valves without disturbing piping.
• High-Temperature Seals: Includes industrial-grade elastomers designed to withstand constant thermal cycling in heating and cooling loops.
• Universal Connection Support: Compatible with both NPT threaded and sweat connections within the specified size range.

Is this repair kit compatible with 3-way PopTop valves?
No, the 100-081 is strictly designed for 2-way valve configurations. For 3-way mixing or diverting valves, a different rebuilding kit series is required to match the internal porting.

Can I use this kit for both VT and VS series valve bodies?
Yes, this kit is compatible with the PopTop series valve bodies, though the operational temperature and pressure limits will be dictated by the specific body rating (VT for general service and VS for steam).

Does this kit include the motorized actuator?
This is a mechanical rebuild kit for the valve internals only. If the motor has failed, the actuator must be purchased separately or as a complete assembly.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
