Schneider Electric (Erie) AG13A020 Actuator

Schneider Electric (Erie) AG13A020 Actuator

  • $66.03


Motor, Actuator, 24Vac, Two Position, Spring Return, Normally Closed, and 18" Wire Leads

AG13A020 is the direct replacement for JG13A020

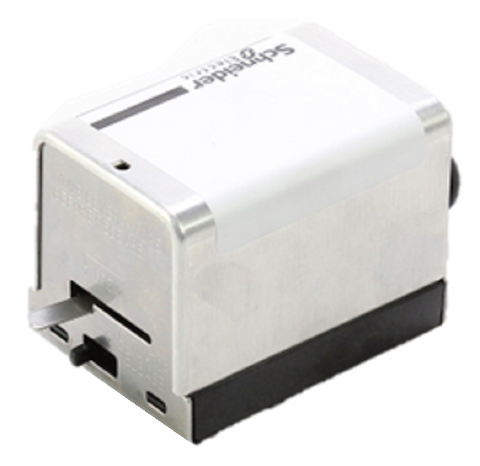

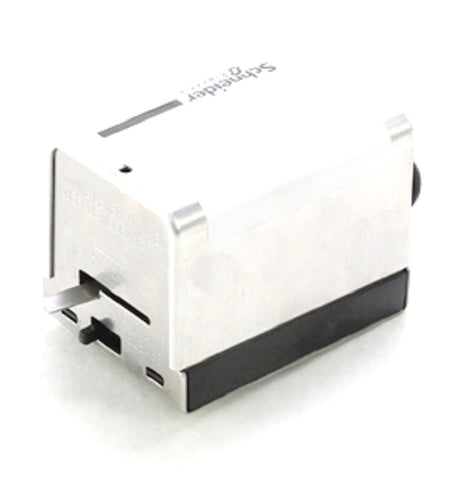

Schneider Electric (Erie) AG13A020 Electric Actuator – 24VAC, Two-Position, Spring Return, Normally Closed, with 18" Wire Leads

Boost your HVAC system’s performance and reliability with the Schneider Electric (Erie) AG13A020 Actuator – a durable, high-quality component designed for seamless zone valve control. Engineered to work with Erie PopTop® valve bodies, this 24VAC electric actuator offers two-position control with a spring return fail-safe, making it ideal for both residential and commercial applications.


🔧 Product Overview:

  • Model: AG13A020

  • Type: Electric Actuator Only

  • Manufacturer: Schneider Electric (Erie)

  • Voltage: 24 VAC ±10% @ 7.5 VA

  • Control Signal: Two-Position, Two-Wire

  • Fail-Safe Mode: Spring Return (Normally Closed)

  • Wiring: 18" Leads

  • Mounting: Erie PopTop® Compatible

  • Manual Override: Yes (N.C. actuators only)

  • Spring Return Time: ≤ 9 seconds

  • Drive Time: ≤ 25 seconds @ 60 Hz

  • Auxiliary Contacts: N.O., 24–240 VAC / 9–30 VDC

  • Certifications: UL, CE


🌡 Performance & Compatibility:

  • Valve Compatibility: 2-way and 3-way PopTop® valves

  • Cv Range: 1.0 to 8.0

  • Valve Trim: Brass

  • Flow Pattern: 2-Way (Quick Opening)

  • Fail-Safe Position: Normally Closed

  • Max Closeoff Pressure:

    • Cv 1.0–1.5: 60 psid (AG), 75 psid (AH)

    • Cv 7.5–8.0: 17 psid (AG), 20 psid (AH)

  • Max Pressure Rating: 300 psig

  • Media Compatibility: Hot/chilled water, 50% glycol, or 15 psig steam

  • Media Temp Range: 32°F to 200°F (AG), up to 250°F with AH actuator

  • Operating Ambient Temp: Up to 104°F (AG), 169°F (AH)


🔩 Construction & Connections:

  • Materials:

    • Brass valve body & seat

    • Nickel-plated stem

    • BUNA-N paddle

    • Stainless steel base plate

    • Aluminum actuator cover

  • Connection Types: FNPT, Sweat, or Inverted Flare (3/4" only)

  • Available Valve Sizes: 1/2", 3/4", 1"

  • Leakage Rating: ANSI Class IV (≤ 0.01%)

  • Weight:

    • Actuator: 1.0 lb (0.45 kg)

    • Valve Body: <1.4 lb (0.64 kg)


Why Choose the Erie AG13A020 Actuator?

  • Reliable spring return fail-safe for enhanced safety

  • Easy installation with PopTop® mounting and replaceable actuator

  • Supports a wide range of HVAC applications including mixing and diverting

  • Compatible with multiple valve sizes and flow characteristics

  • Built to withstand high temperatures and demanding conditions


Optimize your zone control system with the Schneider Electric (Erie) AG13A020 Actuator — engineered for precision, reliability, and long-term performance.
