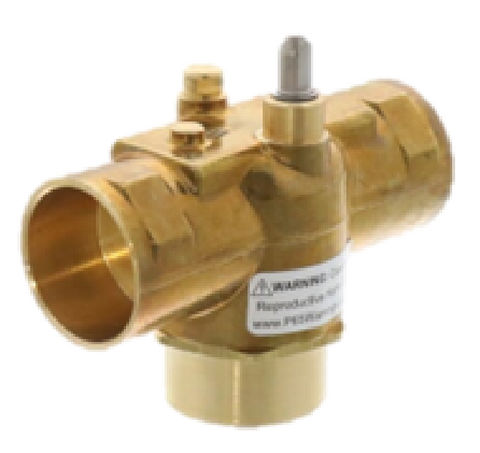

Schneider Electric (Erie) VM3413 Valve Body

The Schneider Electric (Erie) VM3413 Valve Body is a robust 1-inch, three-way modulating valve engineered for precision in high-demand hydronic applications. Built with a brass forged body rated for 300 psig, this component is a staple for contractors managing terminal unit flow in air handlers, fan coils, and HVAC zone control systems. Its 4.0 Cv rating provides an equal percentage flow characteristic, ensuring stable temperature regulation even during variable load conditions.

Designed for seamless integration, the VM3413 utilizes the Poptop removable actuator system, allowing for rapid field installation or replacement without breaking pipe connections. The 1-inch sweat connection ensures a reliable, leak-free seal in closed-loop systems using hot water, chilled water, or up to 50% ethylene glycol mixtures. With a leakage rating meeting ANSI Class IV standards, this valve body maximizes energy efficiency by preventing unwanted flow-through when closed.

Key Benefits

• System Versatility: Fully compatible with Schneider Electric AT (tri-state) and AP (proportional) actuators for flexible control logic.
• Durable Construction: Features a brass valve body and seat with a chrome-plated stem for long-term corrosion resistance in hydronic environments.
• Ease of Maintenance: The PopTop actuator mounting enables quick serviceability without system draindown.
• High Close-Off Performance: Engineered to handle high differential pressures, providing dependable shut-off in commercial and residential settings.
• Precision Modulation: Optimized 4.0 Cv flow coefficient facilitates accurate mixing or diverting in HVAC systems.

Common Questions

Can the VM3413 be used in steam applications?
No, this specific model is designed for hot and chilled water systems and is not steam rated. For steam applications, please consult the Schneider Electric high-temperature valve series.

Does this valve body support spring return actuators?
Yes, the VM3413 is compatible with both spring return and non-spring return PopTop actuators, depending on your fail-safe requirements (Normally Closed/Normally Open configurations).

What is the maximum fluid temperature for this valve?
The unit is rated for a media temperature range of 32°F to 200°F (0°C to 93°C), making it suitable for standard boilers and chillers.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
