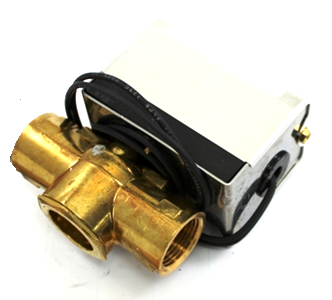

Schneider Electric (Erie) VS2322G14A020 Valve Assembly

The Schneider Electric Erie VS2322G14A020 is a heavy-duty two-way normally closed zone valve engineered specifically for high-temperature steam applications. This 3/4 inch NPT assembly features a 2.5 Cv flow coefficient, making it an ideal choice for precise fluid control in hydronic systems. Operating on a 24Vac power supply, the integrated spring return actuator ensures fail-safe operation by automatically returning the valve to its closed position during power loss. Designed for two-position steam control, this PopTop series valve utilizes a high-temperature bellows seal to withstand the rigors of low-pressure steam environments without premature packing failure. The stainless steel construction and high-grade seals provide reliable zone valve synchronization, ensuring consistent heating performance across commercial and residential HVAC footprints.

Key Benefits

• System Reliability: The normally closed configuration prevents unauthorized flow, stabilizing pressure in high-temperature zones.
• Ease of Installation: Features the Erie PopTop quick-release actuator, allowing for motor replacement without draining the system or breaking pipe connections.
• Steam Rated Durability: Specifically calibrated as a two-position steam zone valve, capable of managing temperatures that standard hydronic valves cannot handle.
• Fail-Safe Logic: The mechanical spring return provides a positive seal, critical for protecting downstream equipment during electrical outages.
• Standard Threading: The 3/4" NPT connection ensures seamless integration with existing piping manifolds and standard HVAC fittings.

Common Questions

Is the VS2322G14A020 suitable for high-pressure steam?
This assembly is optimized for low-pressure steam and high-temperature hot water. Always verify your system's PSI ratings against the specific Schneider Electric maximum operating pressure differential to ensure the 2.5 Cv rating meets your flow requirements.

Can the actuator be replaced without removing the valve body?
Yes, the PopTop series architecture allows for independent service of the 24Vac actuator. The one-handed removal mechanism facilitates fast maintenance cycles in tight mechanical closets.

What is the default state of this valve?
The valve is normally closed (NC). It requires a constant 24V signal to remain open and will utilize the internal spring return to shut off flow immediately upon power de-activation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
