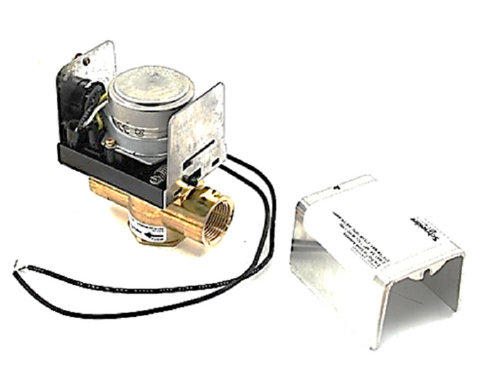

Schneider Electric (Erie) VS2327G24A020 Valve Assembly

The Schneider Electric Erie VS2327G24A020 is a heavy-duty two-way normally open zone valve engineered for high-temperature applications, including high-pressure steam and low-pressure steam systems. This Schneider Electric VS2327G24A020 features a 3/4" NPT connection and is powered by a 24Vac spring return actuator, ensuring reliable fail-safe operation in critical HVAC circuits. With a 7.5 Cv flow coefficient, this assembly handles significant flow rates while maintaining precise two-position control. The PopTop actuator design allows for quick removal, simplifying field maintenance and replacement without draining the entire system. Designed for durability in steam zone valve applications, the forged brass body and stainless steel stem components withstand the thermal stresses of steam heating. This Erie zone valve assembly is a standard choice for contractors looking for high-temperature 2-way valves that provide consistent shut-off performance and long-term reliability in demanding hydronic and steam environments.

• High Thermal Tolerance: Specifically rated for high-temperature water and steam applications, preventing premature seal failure.
• Serviceability: The PopTop actuator enables tool-free removal, reducing labor time during troubleshooting or component swaps.
• Spring Return Fail-Safe: Automatically returns to the normally open position upon loss of power to prevent system freeze-ups or stagnation.
• High Flow Capacity: The 7.5 Cv rating minimizes pressure drop across the valve, optimizing pump efficiency in commercial loops.
• Standardized Threading: Features a 3/4 inch NPT female connection for seamless integration into existing North American piping.

Can this valve be used for both hot water and steam systems?
Yes, the VS2327G24A020 is specifically designed for high-temperature applications, making it suitable for both hydronic heating and low-pressure steam systems.

What is the default position of the valve if the 24Vac signal is lost?
This is a normally open (NO) valve assembly. When power is removed, the internal spring return mechanism forces the valve back to the open position.

Does this assembly include the actuator and the valve body?
Yes, the VS2327G24A020 is a complete factory-assembled unit including the high-temperature valve body and the compatible 24V spring return actuator.
