Schneider Electric (Erie) VT2223 Valve Body

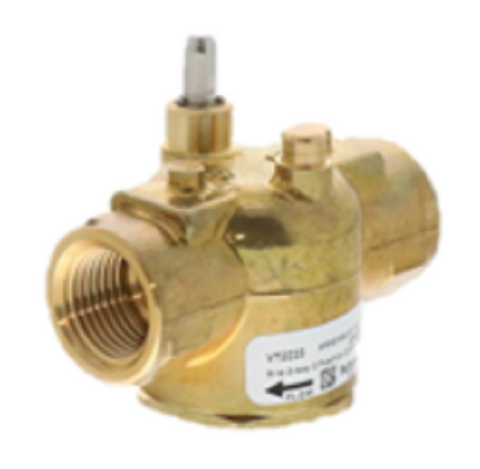

The Schneider Electric Erie VT2223 is a high-performance 1/2" NPT two-way zone valve body designed for precision flow control in hydronic systems. Engineering a reliable seal for hot and chilled water applications, this 2-position zone valve features a 3.5 Cv flow coefficient, making it ideal for fan coils, baseboards, and air handlers. Built with a rugged forged brass body and a nickel-plated stem, it ensures long-term durability in closed-loop HVAC environments. This unit utilizes the patented PopTop actuator technology, allowing for tool-free actuator installation and removal, which simplifies field service and maintenance. Rated for 400 psi static pressure and capable of handling up to 50% glycol concentrations, the Erie VT2223 valve body provides a quick-opening flow characteristic and an ANSI Class IV leakage rating. Whether you are performing a zone valve replacement or a new HVAC zone control installation, this brass zone valve body offers the professional-grade reliability required for demanding terminal unit applications.

• Interchangeable Design: The PopTop mounting system allows for one-handed actuator engagement without linkages or complex calibration.
• High Pressure Resilience: Rated for a 400 psi static pressure limit, ensuring stability in high-rise and large-scale residential hydronic systems.
• Standardized Connections: Standard 1/2 inch NPT female threads provide easy integration with existing copper or PEX piping manifolds.
• Optimized Flow: The 3.5 Cv rating balances flow capacity with precise two-position on/off control to prevent water hammer and system noise.

Is the VT2223 compatible with steam applications?
This specific model is designed for water and glycol solutions. For low-pressure steam applications up to 15 psi, the VS series valve bodies should be used instead.

Can the actuator be replaced without draining the system?
Yes, the PopTop design allows the actuator to be removed and replaced without breaking the plumbing seal or removing the valve body from the line.

Does this valve body include the actuator?
No, the VT2223 is the zone valve body only. Complementary AG or AH series actuators must be purchased separately.
