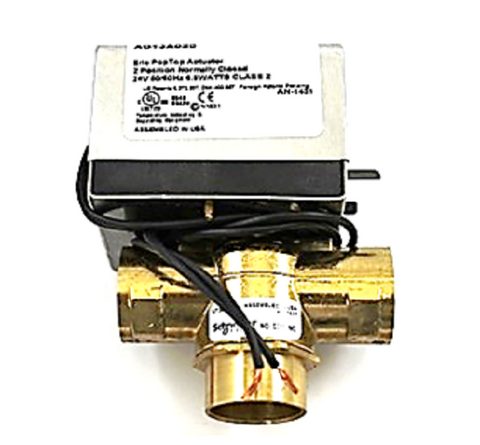

Schneider Electric (Erie) VT3415G13A020 Valve Assembly

The Schneider Electric (Erie) VT3415G13A020 Valve Assembly is a professional-grade 3-way hydronic zone valve engineered for precision fluid management in commercial and residential HVAC systems. Built with a rugged 1-inch sweat connection forged brass body, this PopTop series valve is a staple for veteran technicians who demand reliable two-position control for hot or chilled water applications. The system utilizes an AG13A020 actuator, providing a dependable 24Vac spring return mechanism that ensures the valve returns to its fail-safe position during power loss. With a 5.0 Cv flow coefficient, this assembly minimizes pressure drop across the loop, maintaining high-efficiency performance in fan coil and baseboard installations. The synchronous motor-driven actuator features the iconic "one-handed" removal button, allowing for rapid field replacement without breaking the hydronic seal or draining the system. This Normally Closed (NC) configuration is rated for static pressures up to 400 psi and medium temperatures up to 200°F, making it a versatile choice for demanding BMS (Building Management System) integrations.

• Modular PopTop Design: Fast-release actuator allows for immediate servicing without plumbing disassembly.
• Durable Construction: Forged brass body with stainless steel spring and nickel-plated stem ensures long-term corrosion resistance.
• High Close-Off Pressure: Engineered to handle significant differential pressure, preventing leakage in high-head pump systems.
• Quiet Operation: Designed to eliminate water hammer and provide silent 10-second opening and 5-second closing cycles.
• Universal Compatibility: Standard 24V wiring integrates seamlessly with most HVAC zone controllers and thermostats.

Can this valve be used for steam applications?
The VT series is primarily designed for hot/chilled water and glycol up to 50%. For low-pressure steam (up to 15 psi), you must ensure the specific VS series body and high-temp actuator rating are utilized.

Is an auxiliary end switch included with this model?
The VT3415G13A020 features the standard AG13A020 actuator. If your application requires an auxiliary end switch to signal a boiler or pump, look for models with an "A" suffix (e.g., AG13A02A).

What is the maximum fluid temperature rating?
This Erie zone valve is rated for fluid temperatures ranging from 32°F to 200°F (0°C to 93°C) at a 104°F ambient environment.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
