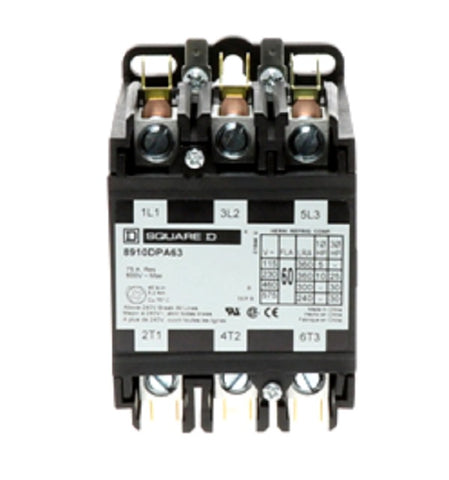

Schneider Electric (Square D) 8910DPA63V09 Contactor

As an HVACR professional, you know that reliability in commercial high-amperage applications starts with a robust definte purpose contactor. The Schneider Electric (Square D) 8910DPA63V09 is a heavy-duty 3-pole contactor designed for demanding heating, air conditioning, and refrigeration systems. Rated for 60 FLA (Full Load Amps) and 75 amps resistive, this unit manages significant inductive loads, providing a locked rotor rating up to 360A at 230V. This model is the direct replacement for 92-465, ensuring a seamless drop-in fit for older York and multi-brand equipment. Featuring a 208/240V AC coil, it utilizes double quick-connect terminals and box lugs to streamline field wiring and reduce installation time. The compact design supports DIN track mounting or standard panel mounting, while the 3 NO (Normally Open) contact configuration and high horsepower ratings (up to 30 HP at 460/575 VAC) deliver the mechanical durability required for industrial motor control and large-scale compressors.

Key Benefits

• Direct Replacement: Engineered as a high-performance alternative to 92-465, ensuring compatibility with existing commercial HVAC infrastructure.
• High Power Capacity: Rated for 60A inductive and 75A resistive loads, suitable for three-phase systems up to 600V.
• Simplified Wiring: Equipped with box lugs and quick-connect terminals for secure, low-resistance electrical connections.
• Flexible Mounting: Features an industry-standard footprint with DIN rail and panel mount options for rapid deployment in various control cabinets.
• Durable Construction: Built to Square D DPA standards, offering reliable switching for compressors, fans, and resistive heating elements.

Common Questions

Can I use this contactor for a 480V motor?
Yes, the 8910DPA63V09 is rated for operational voltages up to 600V AC and supports 30 HP at 460/575 VAC for three-phase applications.

What is the control circuit voltage requirement?
This specific model requires a 208-240V AC coil voltage. Attempting to use a 24V or 120V control signal will prevent the contacts from engaging correctly.

Does this unit come with auxiliary contacts?
Standard units feature 3PST-NO (Normally Open) main poles. However, the DPA series supports snap-on auxiliary contact modules if your control logic requires additional feedback loops.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
