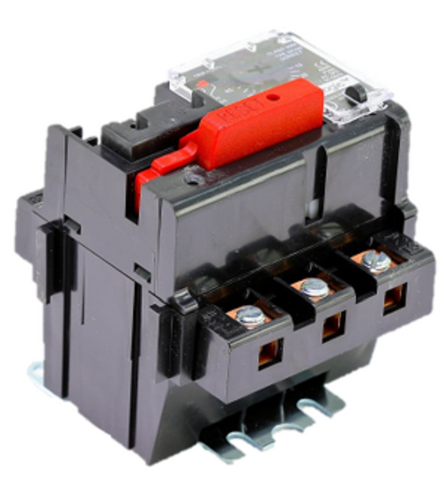

Schneider Electric (Square D) 9065SF220 Overload

The Schneider Electric Square D 9065SF220 solid state overload relay is designed for dependable motor protection in commercial and industrial HVACR applications. This 15-45A overload relay utilizes solid state sensing technology for accurate overload protection on compressors, pumps, blower motors, condensers, and other critical equipment. The adjustable amperage range allows flexibility across multiple motor applications while helping reduce nuisance trips caused by fluctuating loads.

Commonly used in motor starter assemblies and control panels, the Square D 9065SF220 overload is built for compatibility with Schneider Electric motor control systems and provides reliable phase-loss sensitivity and thermal motor protection. Contractors frequently install this HVAC motor overload relay in refrigeration racks, rooftop units, process cooling systems, and industrial air handling equipment where precise motor protection is required for continuous-duty operation.

• Adjustable overload range from 15 to 45 amps
• Solid state motor protection for HVACR equipment
• Helps protect compressors, pumps, and fan motors from overload conditions
• Compatible with Schneider Electric and Square D motor starter systems
• Designed for industrial and commercial control panel applications

Common Question:
Can the 9065SF220 be used as a replacement for older thermal overload relays?
Yes. In many HVACR and industrial motor starter applications, the Schneider Electric 9065SF220 is commonly used to replace older overload units when the amperage range and starter compatibility match the original specifications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

9065SF220 is the cross for 047H0215 (FOR STANDALONE APPLICATION ONLY, IF MOUNTED DIRECT TO CONTACTOR YOU MUST ALSO UPGRADE CONTACTOR)
