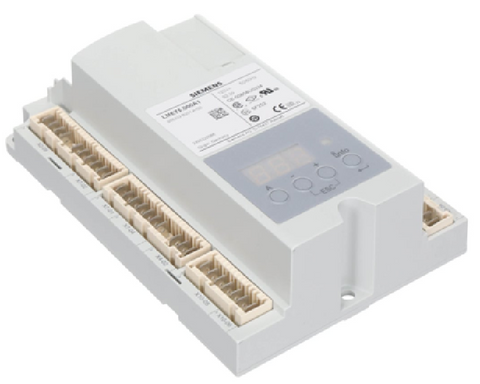

Siemens Combustion LME75.000A1 Control

The Siemens LME75.000A1 serves as a robust microprocessor-based burner control engineered for the supervised startup and continuous monitoring of medium to high-capacity forced draft burners. Operating on 110V AC, this flame safeguard control is essential for industrial combustion systems requiring high safety integrity. It supports diverse applications, including single-stage, multi-stage, or modulating burners utilizing either direct ignition or a pilot burner. This unit architecture facilitates integrated valve proving and a proof of closure (POC) input, streamlining the safety chain without external modules. Technicians can configure PWM, analog, or 3-position step actuator modulation depending on the specific firing rate controller requirements. The unit features a multicolor LED display for real-time status and fault diagnostics, ensuring rapid troubleshooting on-site. Developed for global use, it carries UL, FM, and CSA approvals and is SIL 3 capable when integrated into a supervised system, providing reliable combustion management in mission-critical environments.

Technical Benefits for Professionals:

• Universal Burner Compatibility: Manages atmospheric, forced draft, and industrial burners with air pressure supervision.
• Integrated Safety Logic: Features built-in valve leak test protocols and POC monitoring to reduce installation complexity.
• Advanced Diagnostics: The multi-color signal lamp communicates operational phases and simplifies fault code identification.
• Operational Flexibility: Standardized design allows for seamless integration with Siemens actuators and flame sensors (QRB, QRA, or ION).
• Continuous Service: Rated for permanent operation, making it suitable for processes that run 24/7 without shutdown cycles.

Common Technical Questions:

Is the Siemens LME75.000A1 compatible with UV or ionization flame detection?
Yes, depending on the plug-in module and base configuration, it supports ionisation probes or UV flame detectors (QRA series) for flexible flame sensing across different fuel types.

How does this unit handle valve leakage testing?
The LME75.000A1 includes an internal valve proving program that can be activated to check the gas valves for leaks during the pre-purge or post-purge phase, depending on site requirements.

Does this control require a specific subbase?
Yes, it typically interfaces with the AGM series subbase. Always verify the wiring diagram and terminal assignments to ensure 110V polarity and grounding are maintained for stable signal processing.
