Sporlan 3861-00 Valve

XUP-3-W/MH LESS COIL

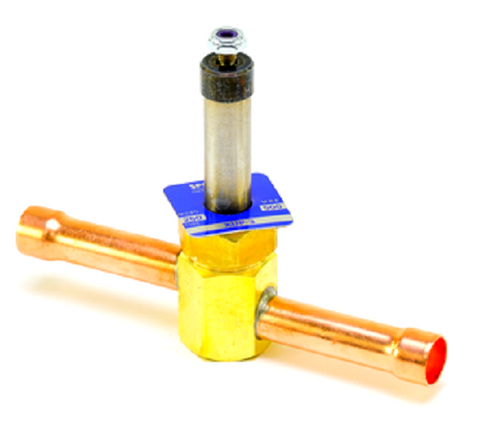

Sporlan 3861-00 Solenoid Valve – XUP-3-W/MH LESS COIL, Rapid Cycle Design, High Performance for Temperature-Sensitive Applications

The Sporlan 3861-00 XUP-3-W/MH is a premium rapid cycle solenoid valve designed to withstand frequent on/off cycling in demanding refrigeration and temperature control systems. Engineered without a coil (LESS COIL configuration), this valve is ideal for applications requiring tight temperature regulation, such as environmental test chambers and precision cooling systems.

🔧 Key Features:

• Part Number: 3861-00

• Model: XUP-3-W/MH (LESS COIL)

• Port Sizes Available: 0.075, 0.115, 6/32, 9/32, 14/32, 19/32

• Max Rated Pressure: 500 PSI

• Max Operating Pressure Differential (MOPD): 250 PSI (AC Voltage)

• Suitable Media: Liquid or Vapor

• Application: Designed for rapid cycle use in refrigeration systems

• Durability: Reduces plunger and top plug impact to prevent premature failure

✅ Product Highlights:

• Optimized for frequent cycling to maintain consistent temperature control

• Advanced design helps eliminate common failures such as:

  • Top plug damage

  • Plunger mushrooming

  • Enclosing tube cracks

• Compatible with low force coils to minimize impact force during operation

• Ideal for mechanical refrigeration systems and test chambers

📦 Applications:

• Environmental test chambers

• Refrigerated enclosures

• Precision cooling systems

• OEM refrigeration equipment

Built to Sporlan's industry-leading standards, the 3861-00 Rapid Cycle Solenoid Valve delivers superior reliability in high-frequency cycling applications. It’s the trusted solution for professionals who demand performance, longevity, and precision.
