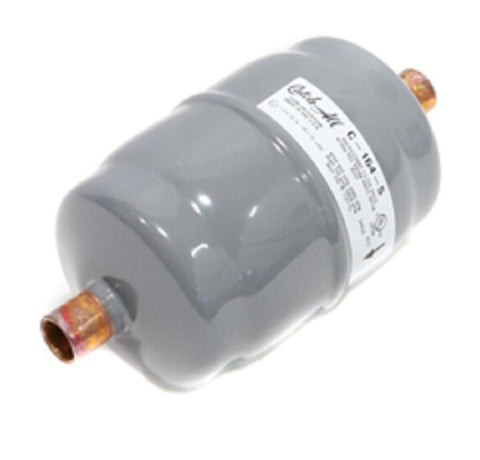

Sporlan 401023 C-164-S Filter Drier

The Sporlan 401023 C-164-S Filter Drier is an industry-standard liquid line filter drier engineered for high-capacity contaminant control in residential and commercial systems. This 1/2" sweat ODF unit is functionally identical to the Sporlan C-164-S and features a 16 cubic inch solid core composed of a specialized desiccant blend. Designed for 3/4 to 5-ton refrigeration and AC applications, it provides exceptional removal of moisture, organic acids, and solid debris. The ODF solder connections utilize solid copper fittings to permit high-temperature brazing without damaging the internal integrity. Rated for a maximum working pressure of 650 psig, this sealed filter drier is fully compatible with R-410A, R-22, and other modern HFC/HCFC refrigerants. Professionals rely on the Sporlan Catch-All series to prevent TEV freeze-ups and compressor failure by capturing particles down to the micron level in a single pass, ensuring long-term system reliability in demanding HVACR environments.

• Contaminant Filtration: High-performance solid core effectively sequesters acid, moisture, and sludge to protect the compressor and expansion valves.
• High Pressure Rating: UL listed for up to 650 psig, making it a reliable R-410A filter drier for modern high-pressure systems.
• Superior Moisture Removal: Formulated desiccant particles offer maximum water capacity to maintain system chemistry and prevent oil breakdown.
• Durable Construction: Features solid copper sweat fittings and a leak-proof steel shell for secure, professional-grade installation.
• Universal Compatibility: Suitable for use in liquid line and hot gas defrost applications across a wide range of refrigerant types.

Is the Sporlan 401023 a direct replacement for the C-164-S?
Yes, the 401023 is the manufacturer part number for the Sporlan C-164-S Filter Drier, featuring the same 1/2" ODF connections and 16 cubic inch capacity.

What is the flow capacity of this 1/2" sweat drier?
This model is typically rated for systems ranging from 3/4 to 5 tons, depending on the specific refrigerant and operating temperature.

Can this filter drier be used with R-410A?
This HVAC filter drier is specifically designed to handle the 650 psi requirements of R-410A systems while providing high acid adsorption.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
