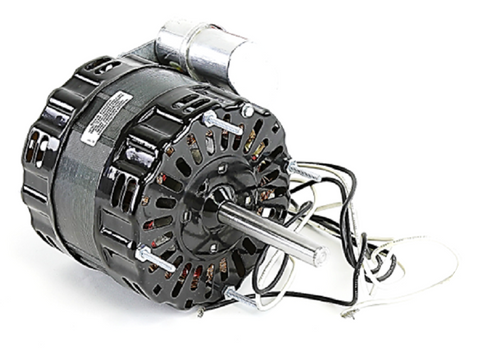

Sterling HVAC 11J31R04094-002 Fan Motor

The Sterling HVAC 11J31R04094-002 Fan Motor is a high-performance 120V 1/3HP CW Fan Motor engineered for heavy-duty commercial and industrial unit heaters. Designed as a direct OEM replacement motor, this Permanent Split Capacitor (PSC) unit operates at a nominal 1,075 RPM with a 5.8 Amp draw, ensuring consistent airflow in demanding environments. It features an Open Drip Proof (ODP) enclosure and a 1/2-inch diameter shaft, making it compatible with a wide range of Sterling and Beacon-Morris TF, QVF, and QVSF series gas-fired unit heaters. The motor includes an automatic reset thermal overload protector to prevent winding failure during high-static conditions and utilizes a 7.5 MFD capacitor for reliable startups. Built with a focus on torque and longevity, this unit heater fan motor provides the necessary static pressure to maintain optimal heat exchange for large-scale warehouse and garage heating systems.

• High-Torque Performance: The 1/3 HP rating delivers the necessary power for large-diameter fan blades in commercial unit heaters.
• Enhanced Protection: Built-in thermal overload protection prevents motor burnout by automatically cycling off during excessive heat buildup.
• Efficient Operation: PSC motor design coupled with a 7.5 MFD capacitor ensures lower energy consumption and reliable starting torque.
• Standardized Housing: Features a standard 48-frame equivalent diameter with an ODP enclosure for maximum motor cooling in high-ambient ceiling installations.
• OEM Compatibility: Replaces common part numbers including J31R04094-001 and McMillan OEM A0828B2842.

• What rotation is required for this model? This motor is designed for Clockwise (CW) rotation when viewing from the shaft end. Verify your fan blade pitch before installation.
• Does this motor include the run capacitor? While the motor requires a 7.5 MFD / 370VAC capacitor, it is always recommended to install a new capacitor during motor replacement to ensure optimal performance and speed.
• Which Sterling heaters is this motor compatible with? It is typically found in Sterling TF, QVF, and QVSF series heaters with capacities ranging from 175k to 400k BTU.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
