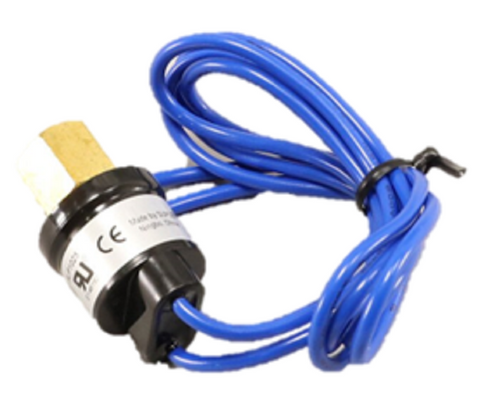

Supco SLP1025 Pressure Switch

10 Open PSI (CUT-OUT), 25 Close PSI (CUT-IN), Low pressure switch, Open on Pressure Drop, SPST

SLP1025 is the direct replacement for 061F7523, 5699

Supco SLP1025 Low Pressure Switch – 10 PSI Cut-Out / 25 PSI Cut-In, SPST HVAC Refrigeration Control

The Supco SLP1025 Pressure Switch is a reliable, factory-calibrated low pressure control switch designed to protect and regulate HVAC and refrigeration systems. Featuring a 10 PSI cut-out (open on pressure drop) and 25 PSI cut-in, this SPST (single pole, single throw) switch delivers accurate and repeatable performance for heat pumps, air conditioning, and refrigeration equipment.

Built for durability and long service life, the SLP1025 uses a snap-acting, hermetically sealed stainless steel sensor for stable operation and excellent set-point accuracy. Its compact, lightweight design allows for direct mounting, while the encapsulated, non-adjustable construction ensures dependable operation without field calibration.

This pressure switch is compatible with HFC, HCFC, and CFC refrigerants, making it a versatile replacement option for many systems. The included ¼" SAE 45° female flare fitting with valve core depressor simplifies installation and servicing.

🔧 Key Features

• Model: Supco SLP1025

• Type: Low Pressure Switch (Opens on Pressure Drop)

• Switch Action: SPST, non-adjustable

• Cut-Out Pressure: 10 PSI

• Cut-In Pressure: 25 PSI

• Encapsulated Design – High reliability and long life

• Hermetically Sealed Stainless Steel Sensor – Precise, stable control

• Direct Mount, Compact & Lightweight

• ¼" SAE Female Flare Fitting with valve core depressor

• 18 AWG Lead Wires, 18" Length

• Rated Life: 100,000 cycles

⚙️ Electrical Ratings

• Voltage: 24 / 120 / 240 VAC (50/60 Hz)

• Max LRA:

  • 17.4A @ 240VAC

  • 34.8A @ 120VAC

• Max FLA:

  • 2.9A @ 240VAC

  • 5.8A @ 120VAC

❄️ HVAC & Refrigeration Applications

• Heat pump systems

• Air conditioning systems

• Commercial and residential refrigeration systems

📊 Specifications

• Tolerance: ±5 PSI

• Burst Pressure: 2800 PSI

• Maximum Operating Pressure: 700 PSI

• Operating Temperature Range: -31°F to 149°F (-35°C to 65°C)

🔄 Cross Reference / Compatible Replacements

• Mars: 333330

• Robertshaw: 3100050

• Ranco: MPL7011

• Johnson Controls: P100AP201C

The Supco SLP1025 Low Pressure Switch is an essential HVAC safety and control component, helping prevent compressor damage by shutting down systems during low-pressure conditions while ensuring reliable restart when pressure returns to normal. Always verify system specifications and pressure requirements before installation.
