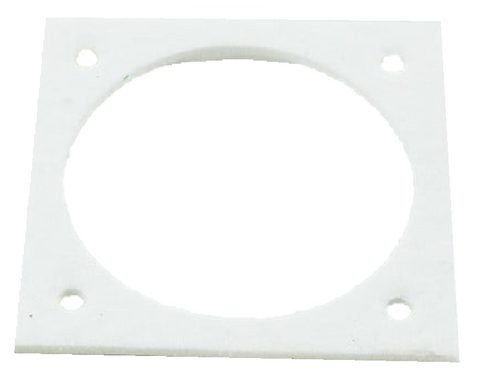

Superior Radiant CH007 Gasket

Maintaining a pressurized seal between the combustion air blower and the burner housing is critical for the vacuum integrity of your infrared heating system. The Superior Radiant CH007 Blower Mount Gasket is a precision-engineered OEM replacement designed specifically for Superior Radiant UA and UX Series infrared heaters. In the field, a compromised gasket often leads to nuisance pressure switch trips or inefficient combustion due to air bypass. Fabricated from high-temperature durable material, this blower mount gasket ensures that the interface remains airtight under standard operating thermal cycles, preventing the energy loss associated with blower-to-housing leaks.

For service calls involving UA/UX series heating parts, inspecting the CH007 gasket is a standard protocol when pulling the blower for motor maintenance or wheel cleaning. This component provides the exact 2.5-inch footprint required for a flush seat, effectively damping vibration while securing the HVAC blower seal. Whether you are performing a seasonal tune-up or a full radiant heater repair, replacing the older, compressed gasket with a fresh Superior Radiant CH007 is a cost-effective way to ensure the unit meets original manufacturer performance specs and maintains proper manifold pressure.

• Matches UA/UX blower compatibility requirements precisely for no-hassle installation during maintenance.
• Eliminates air leaks at the blower interface to prevent radiant heater airflow issues and pressure switch failures.
• High-temperature resilient construction withstands the harsh environments typical of industrial infrared heaters.
• Maintains system efficiency by ensuring all combustion air is directed through the burner assembly.

Is the CH007 compatible with UXR models?
Yes, the Superior Radiant CH007 Gasket is commonly specified for the UA, UX, and UXR series as they share the same blower mounting configuration.

When should I replace the blower mount gasket?
Technicians should replace the CH007 whenever the blower is separated from the housing. Over time, heat cycles cause the gasket material to compress and lose its sealing memory, leading to leaks if reused.

What happens if this gasket is failing?
Failure typically results in a vacuum leak, which can cause the vacuum pressure switch to chatter or fail to close, preventing the ignition sequence from initiating.
