Tekmar Controls 743 Actuating Motor

TEKMAR ACTUATING MOTOR

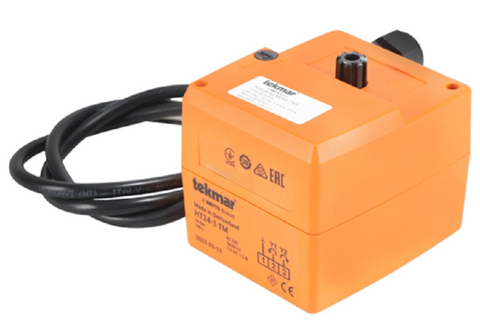

Tekmar Controls 743 Actuating Motor – 24V Floating Action Actuator

Optimize the performance of your tekmar brass mixing valves with the Tekmar Controls 743 Actuating Motor, a reliable 24V floating action actuator designed for precise valve operation. Engineered for efficiency and durability, the 743 actuator delivers smooth and accurate control for residential and commercial HVAC systems.

Key Features:

• Type: Actuating Motor (Floating Action)

• Brand: Tekmar Controls

• Model Number: 743

• Voltage: 24 V AC, floating action

• Torque: 10 N·m (88 in-lbs)

• Rotation Angle: 90° electrically limited shaft rotation

• Run Time: 117 seconds at 60 Hz for open or close

• Compatibility: Designed to operate all tekmar brass mixing valves (710 to 724)

• Enclosure: Polycarbonate, NEMA 1, indoor use (32–122°F / 0–50°C, RH <95% non-condensing)

• Dimensions: 3 5/8" H x 3 1/8" W x 3 9/16" D (93 x 80 x 90 mm)

• Markets: Single-family homes, multifamily homes, small commercial buildings, and commercial buildings with BAS

Why Choose the Tekmar 743 Actuating Motor:
The Tekmar 743 provides precise control of valve positioning by responding to a 24 V AC open or close signal, delivering reliable performance for heating and cooling systems. Its durable polycarbonate enclosure ensures long-lasting operation, while its compatibility with floating action controls makes it versatile for a wide range of HVAC applications.

Applications:
Ideal for homeowners, HVAC technicians, and commercial building managers seeking reliable valve actuation for tekmar brass mixing valves. Ensures safe, accurate, and efficient temperature control in heating systems.
